How to Read OCT Images

(Click on the images to enlarge)

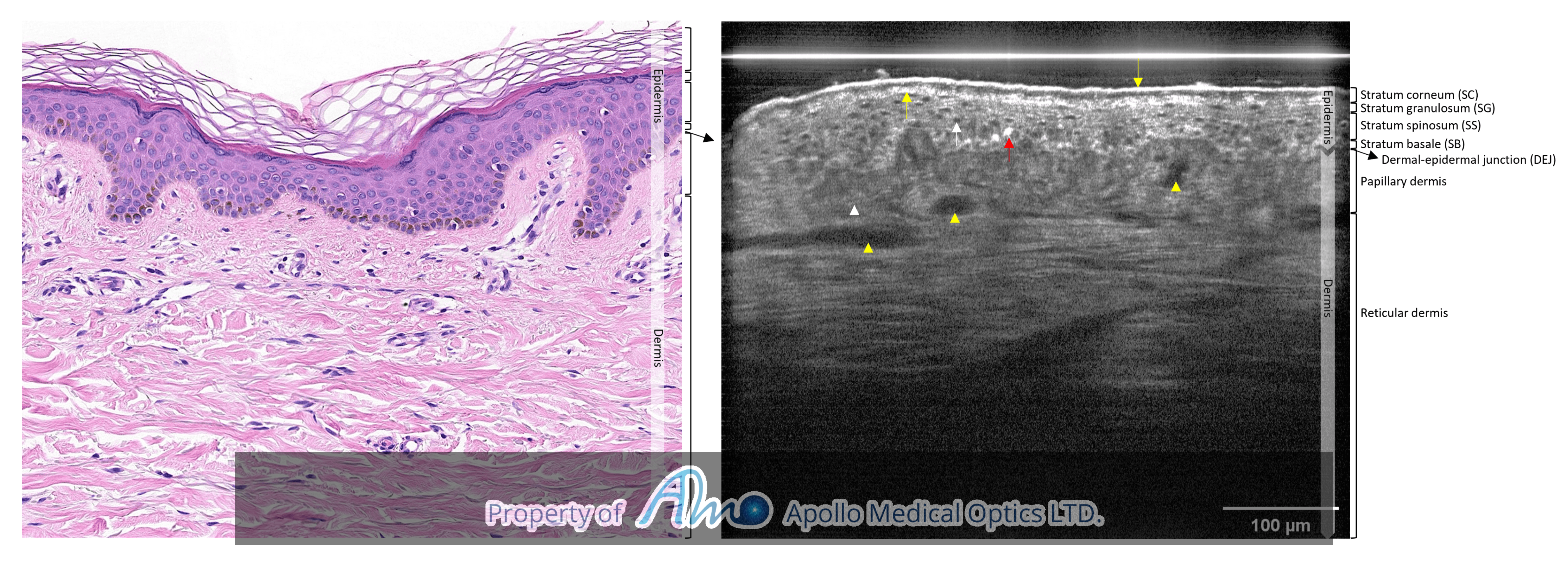

B-scan & Histopathology
・Stratum corneum (yellow arrow) ・Keratinocytes nuclei of OCT image is seen as dark oval (white arrow). ・Melanin in the OCT image presents as hyperreflective spots (red arrow). ・Blood vessel (yellow arrowhead) ・Papillary dermis (white arrowhead)

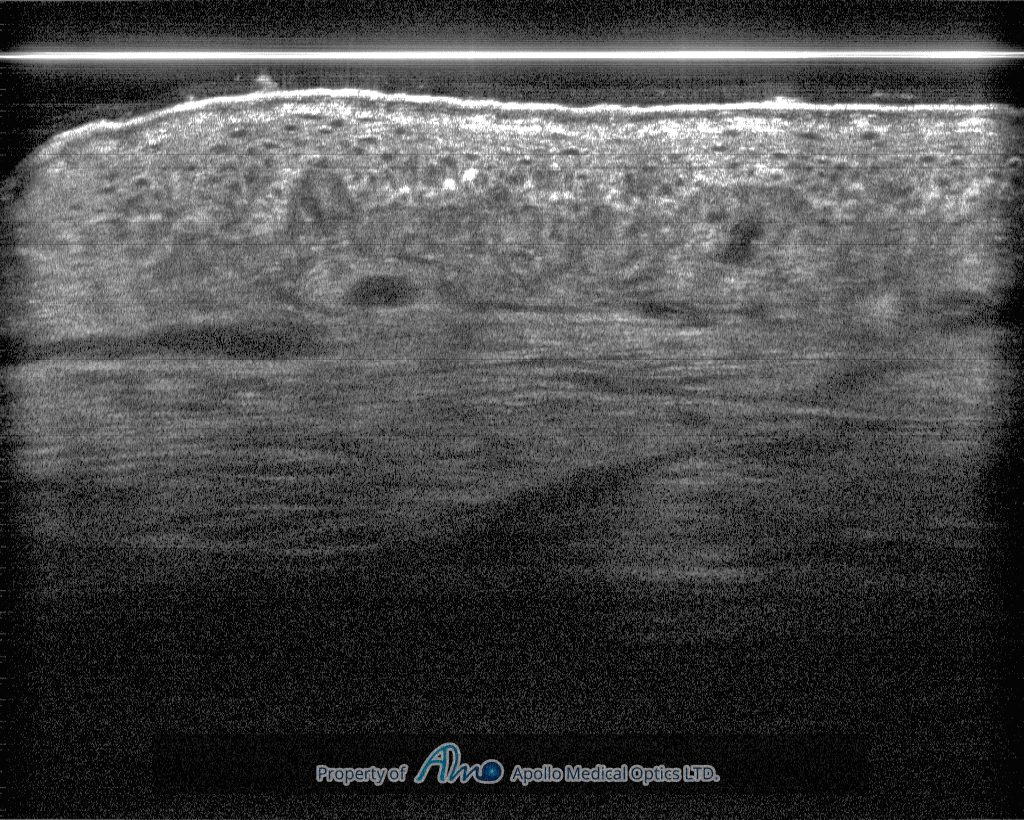

B-scan

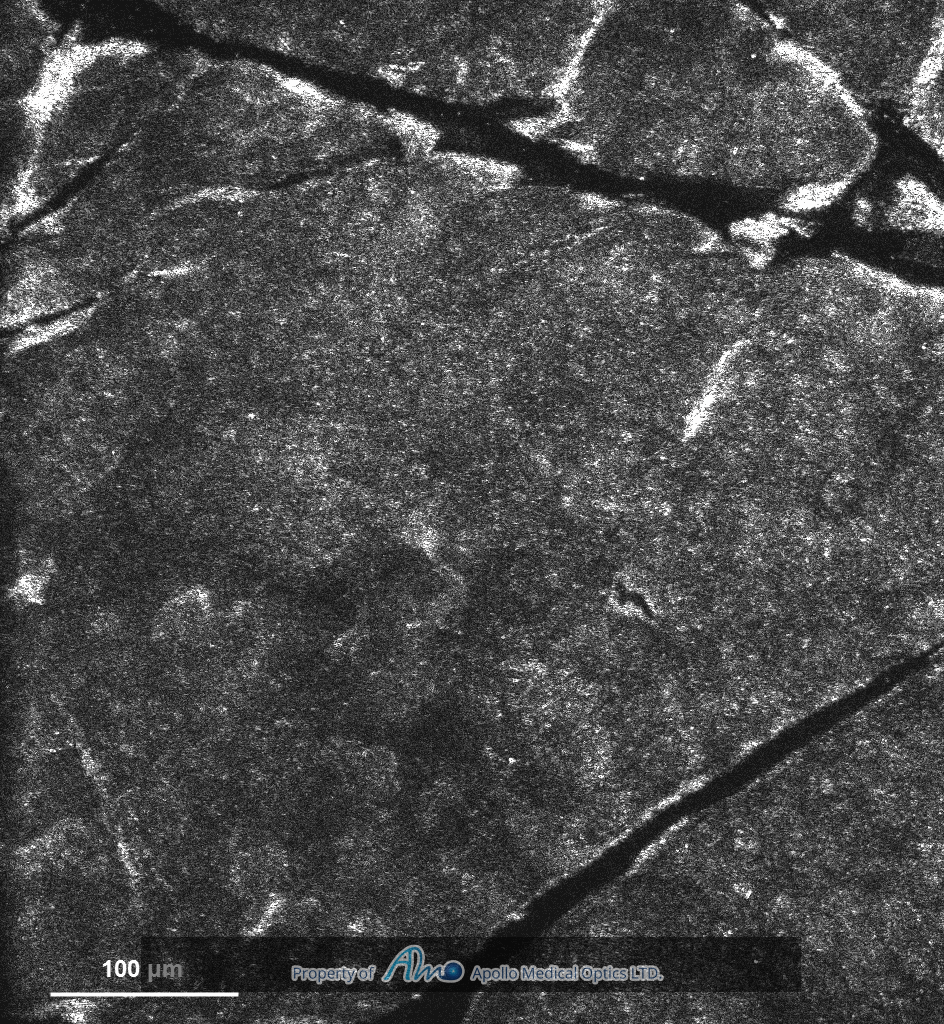

E-scan Stratum Corneum
The stratum corneum is shown as bright material and visible dark and linear skin furrows. ・Dense keratin ・Skin furrows – skin folds

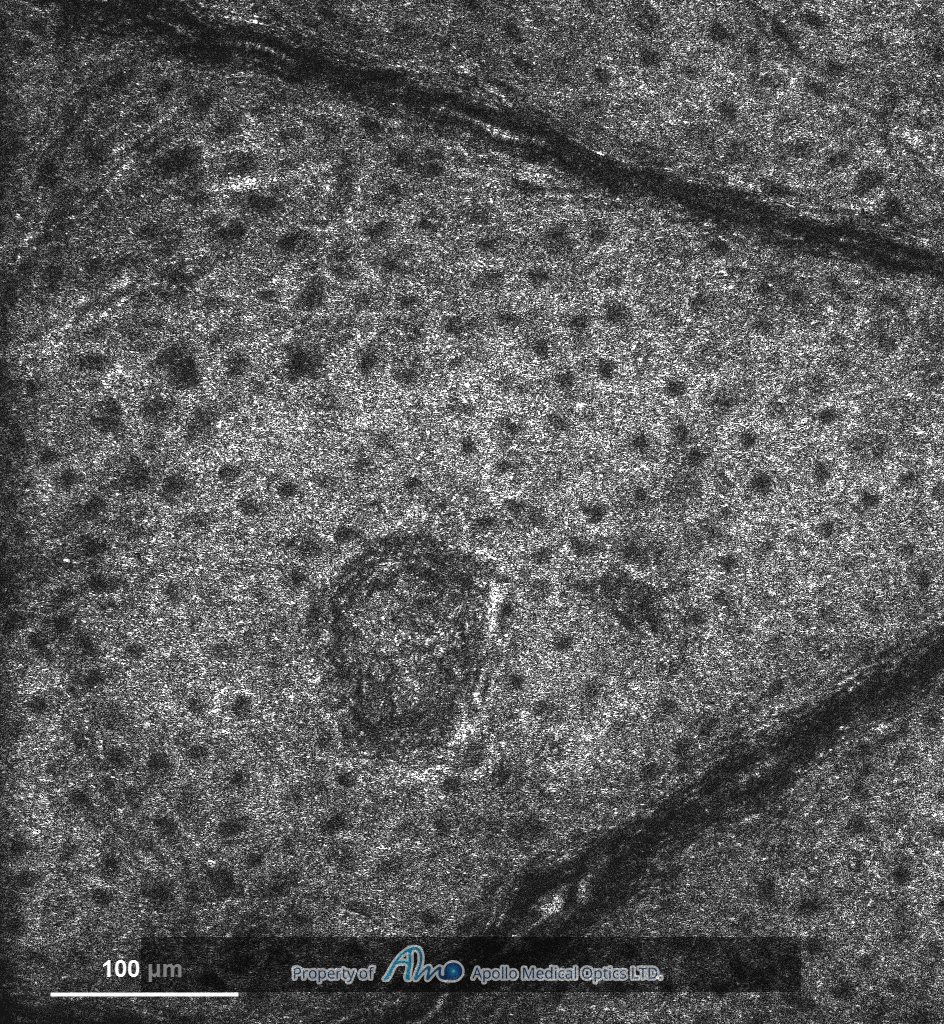

E-scan Stratum Granulosum
The stratum granulosum is shown as honeycombed structures consists of large keratinocytes. At times, dark and linear skin furrows are visible. ・Dark oval nuclei of the keratinocyte with bright cytoplasm ・Skin furrows – skin folds

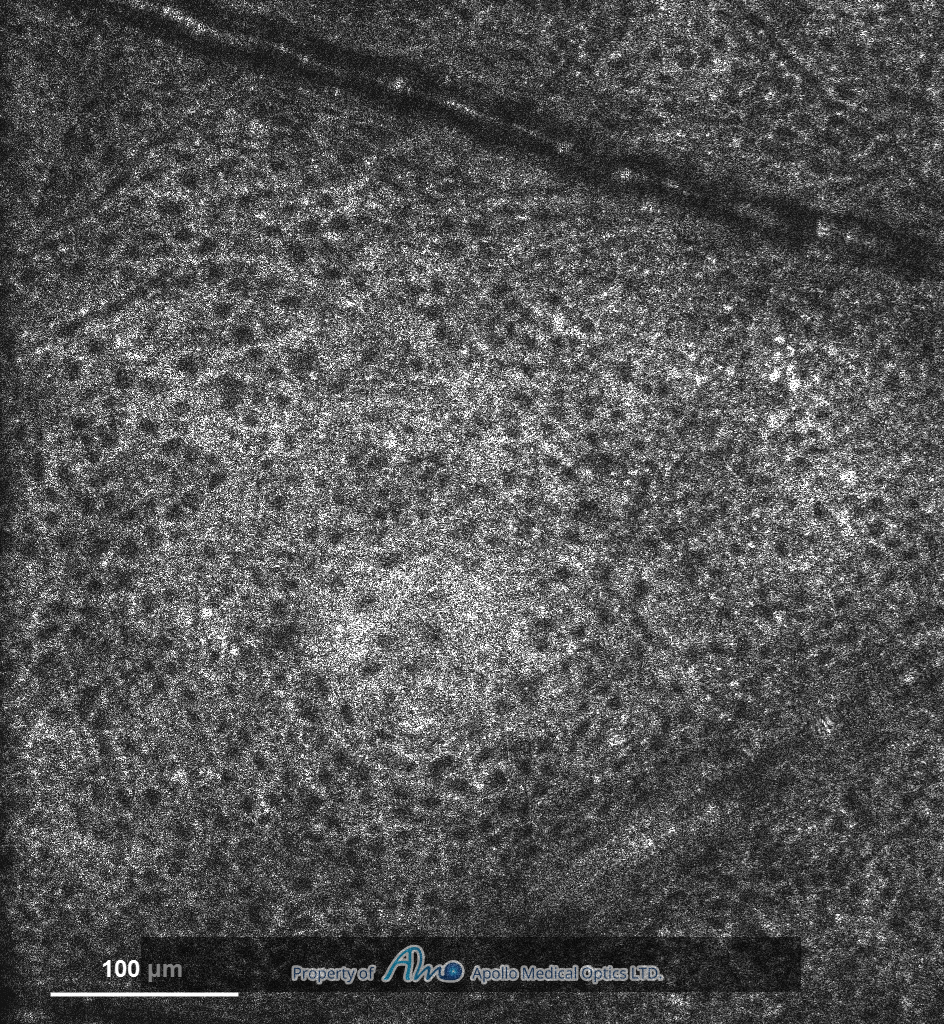

E-scan Stratum Spinosum
The stratum spinosum is shown as typical honeycombed structures consists of keratinocytes. ・Bright cytoplasm and dark oval-round nuclei of the keratinocyte ・Skin furrows – skin folds

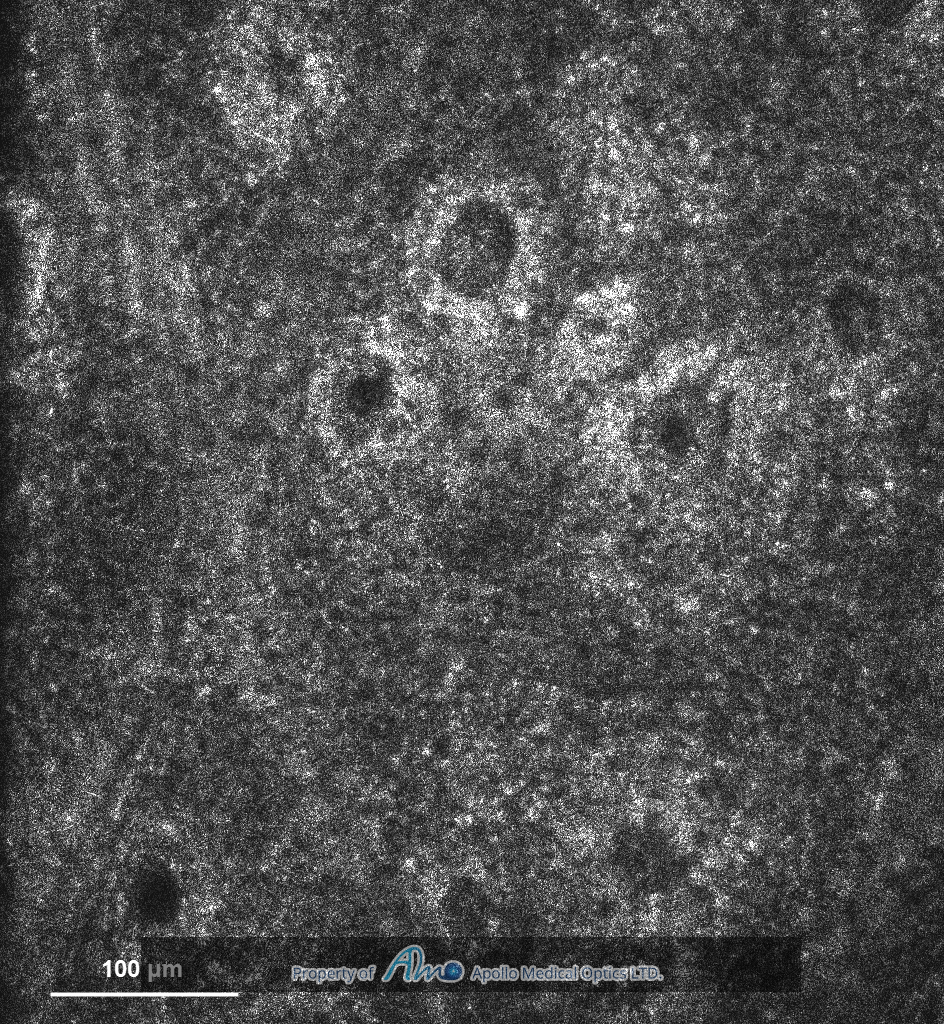

E-scan Dermo-Epidermal Junction
The dermo-epidermal junction is shown as rimmed structures consists of bright keratinocytes surrounding the papillary dermis. ・Bright cytoplasm and dark oval-round nuclei of the keratinocyte ・Melanosomes-containing keratinocytes and melanocytes ・Papillary dermis

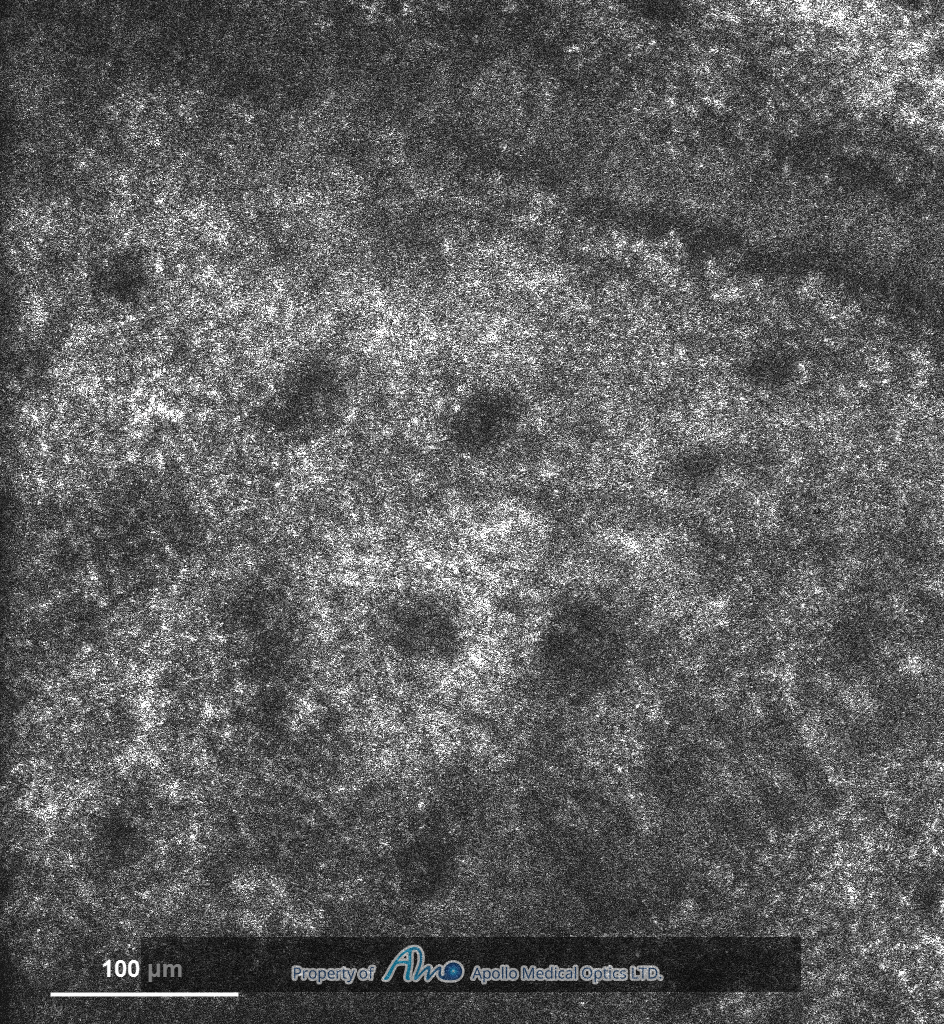

E-scan Papillary Dermis
The upper layer of the dermis. The loose areolar connective tissue consists of fine and loosely arranged collagen fibers. ・Collagen fibers

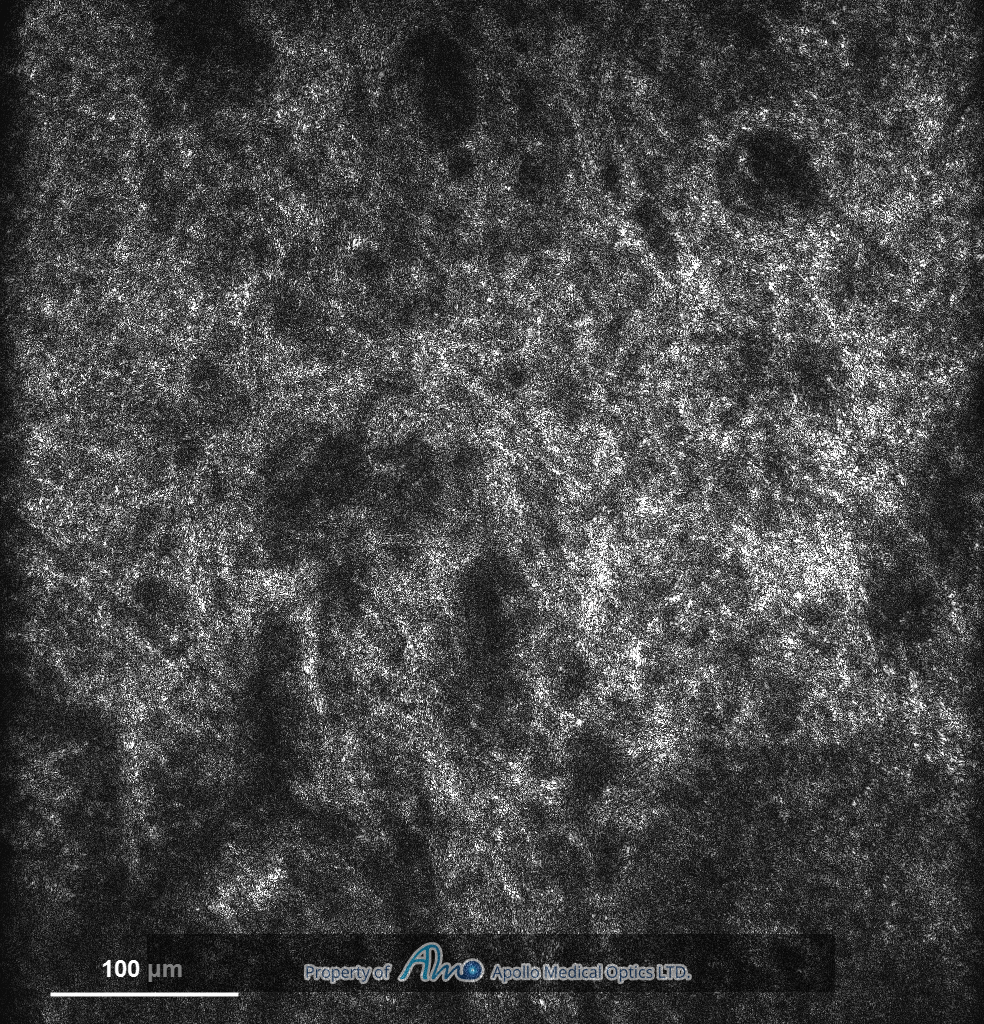

E-scan Reticular Dermis
The main portion of the dermis, including densely packed collagen fibers, elastic fibers, ground substance, and blood vessels ・Collagen fibers ・Blood vessel

Normal Skin

(Click on the images to enlarge)

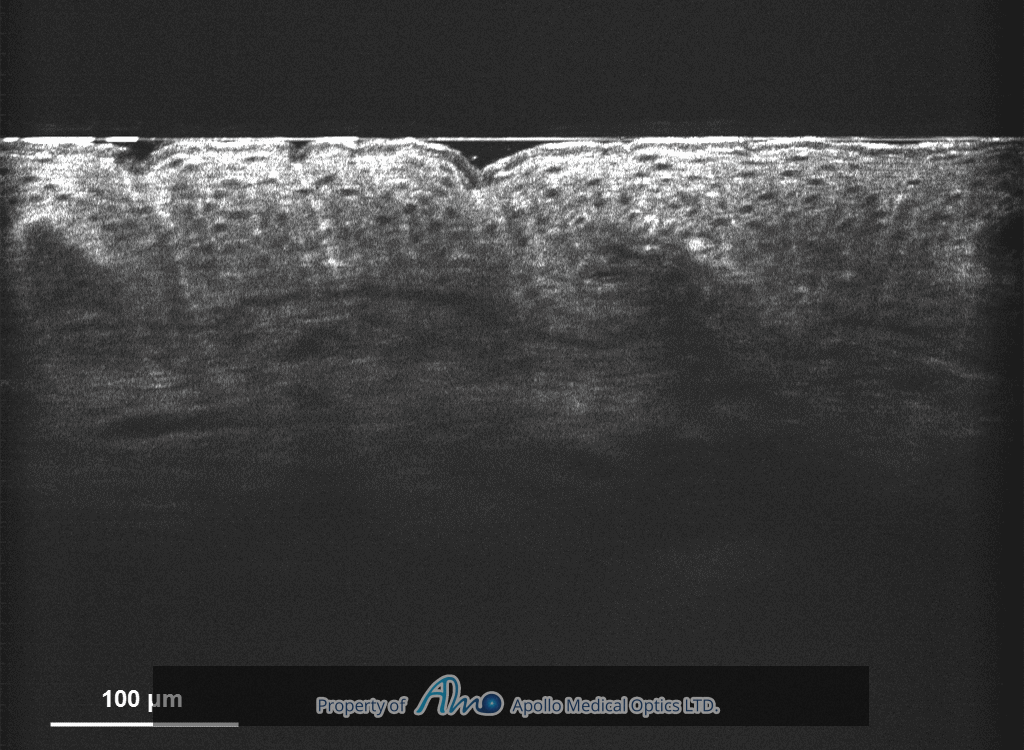

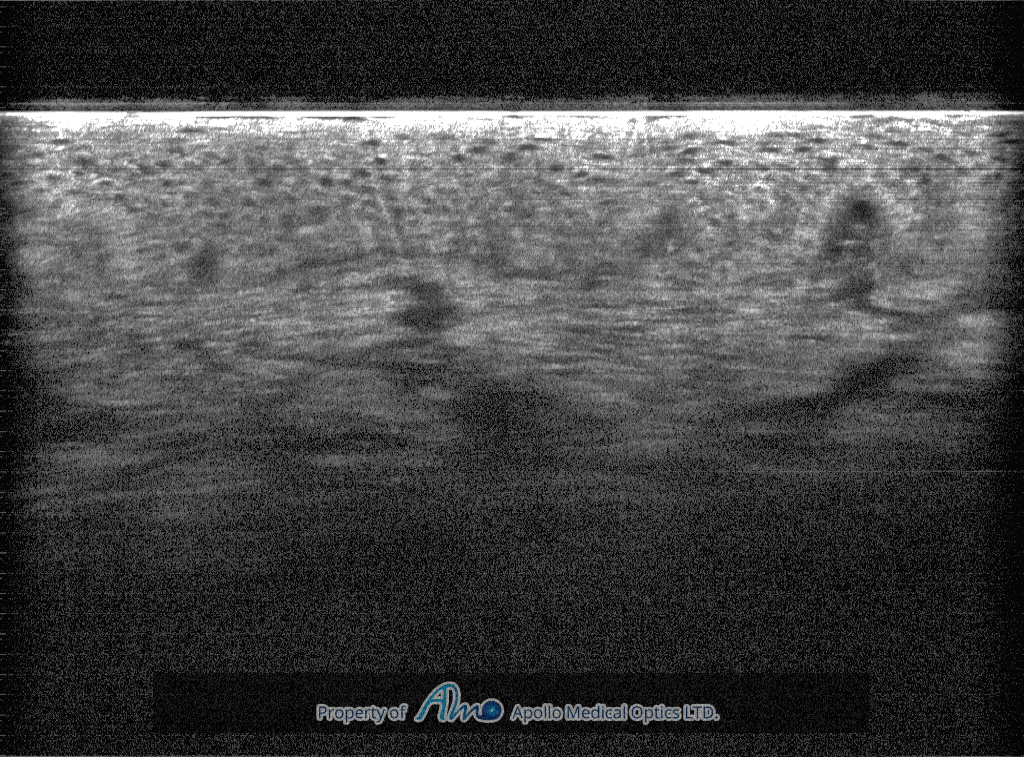

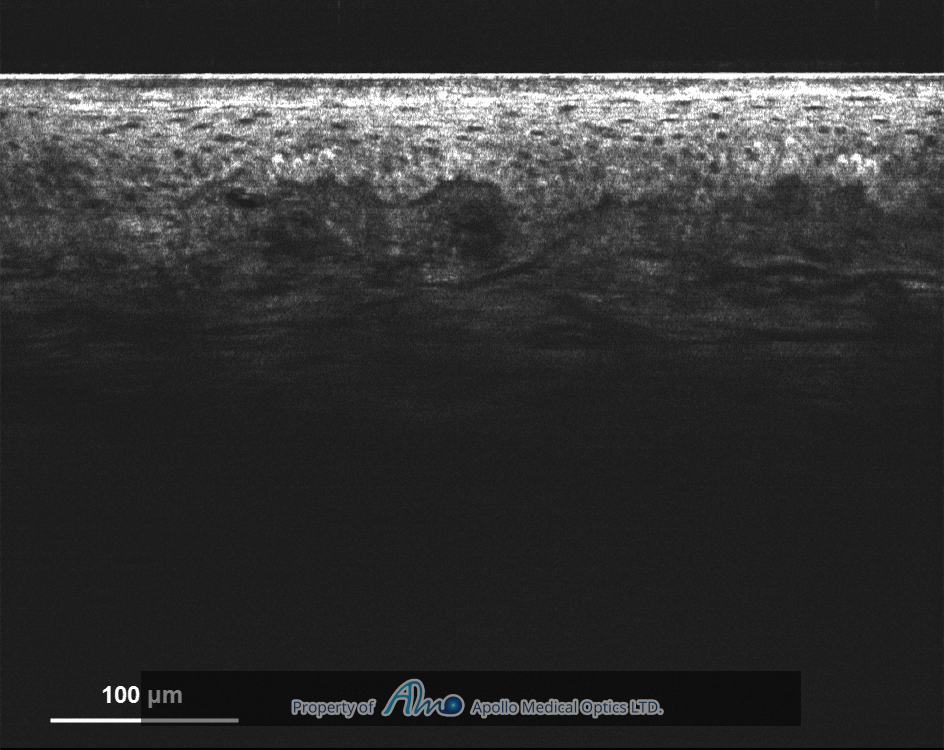

Facial Skin
The morphology and melanin intensity of facial skin varies with age and skin type. The aging process or sun damage affects the thickness, degree of flatness (loss of rete ridges), melanin pigmentation in the epidermis, and elastic fiber degeneration (solar elastosis) in the upper dermis.
Facial Skin
The morphology and melanin intensity of facial skin varies with age and skin type. The aging process or sun damage affects the thickness, degree of flatness (loss of rete ridges), melanin pigmentation in the epidermis, and elastic fiber degeneration (solar elastosis) in the upper dermis.
Facial Skin
The morphology and melanin intensity of facial skin varies with age and skin type. The aging process or sun damage affects the thickness, degree of flatness (loss of rete ridges), melanin pigmentation in the epidermis, and elastic fiber degeneration (solar elastosis) in the upper dermis.

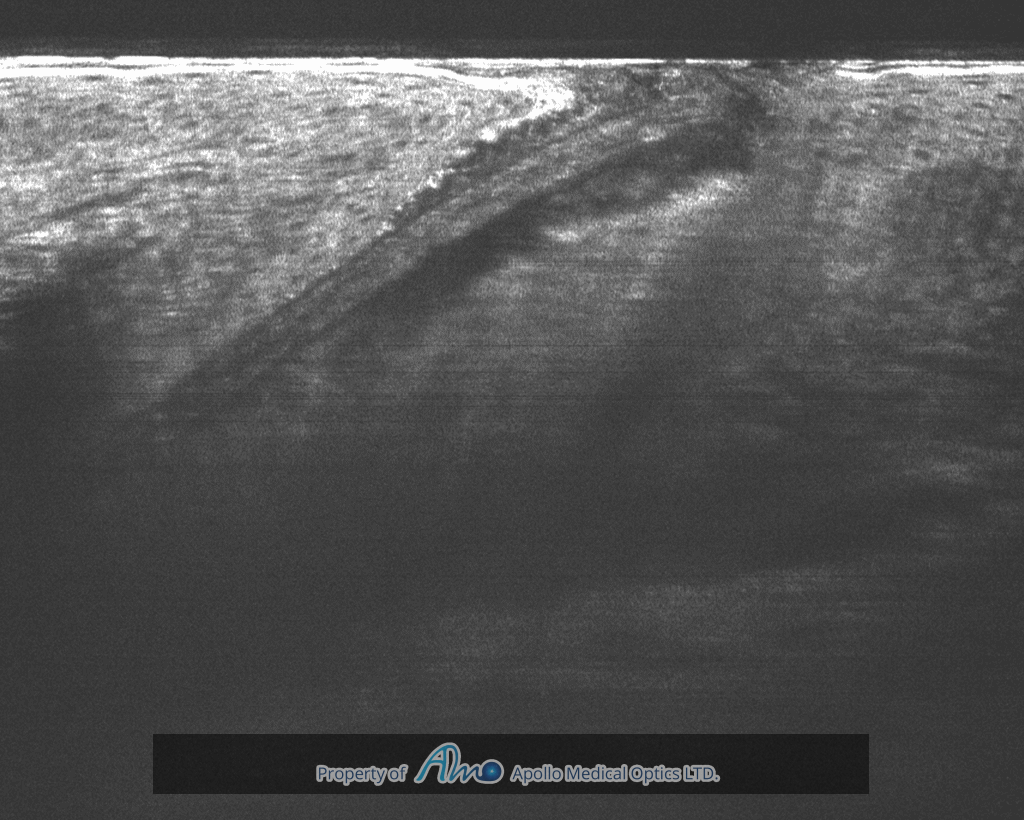

Hair Follicle

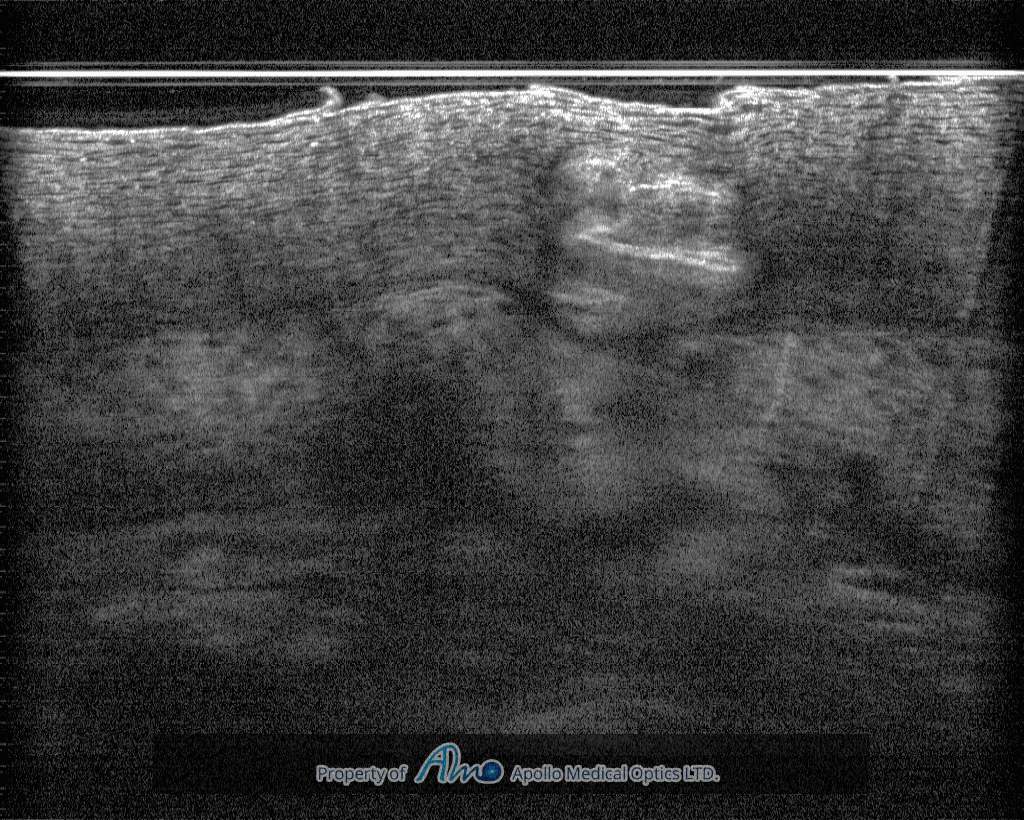

Eccrine Duct
The spiral shape of the acrosyringium in the epidermis is demonstrated clearly.

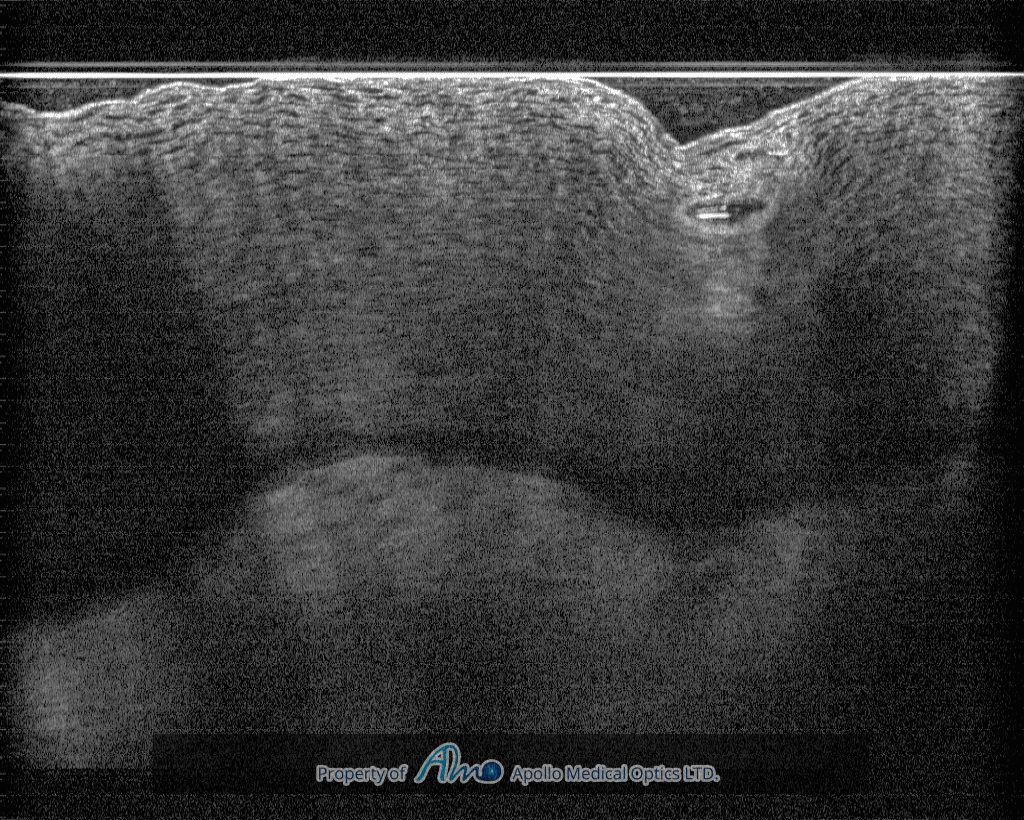

Palm
The palms and soles have the thickest stratum corneum in our body.

Skin Tumor

(Click on the images to enlarge)

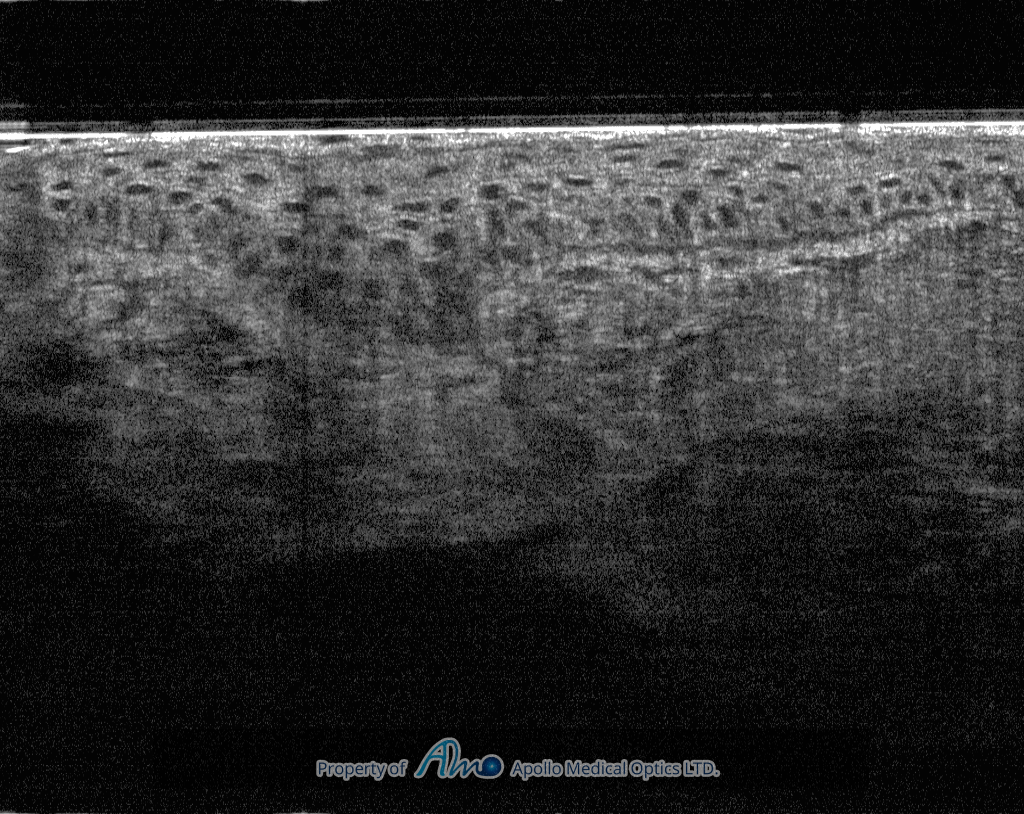

Actinic Keratosis
Actinic keratosis is a pre-malignant skin neoplasm due to severe sun damage. The characteristic pathological features include the disoriented and disorganized atypical keratinocytes in the basal cell layer or lower epidermis, and prominent solar elastosis in the upper dermis.

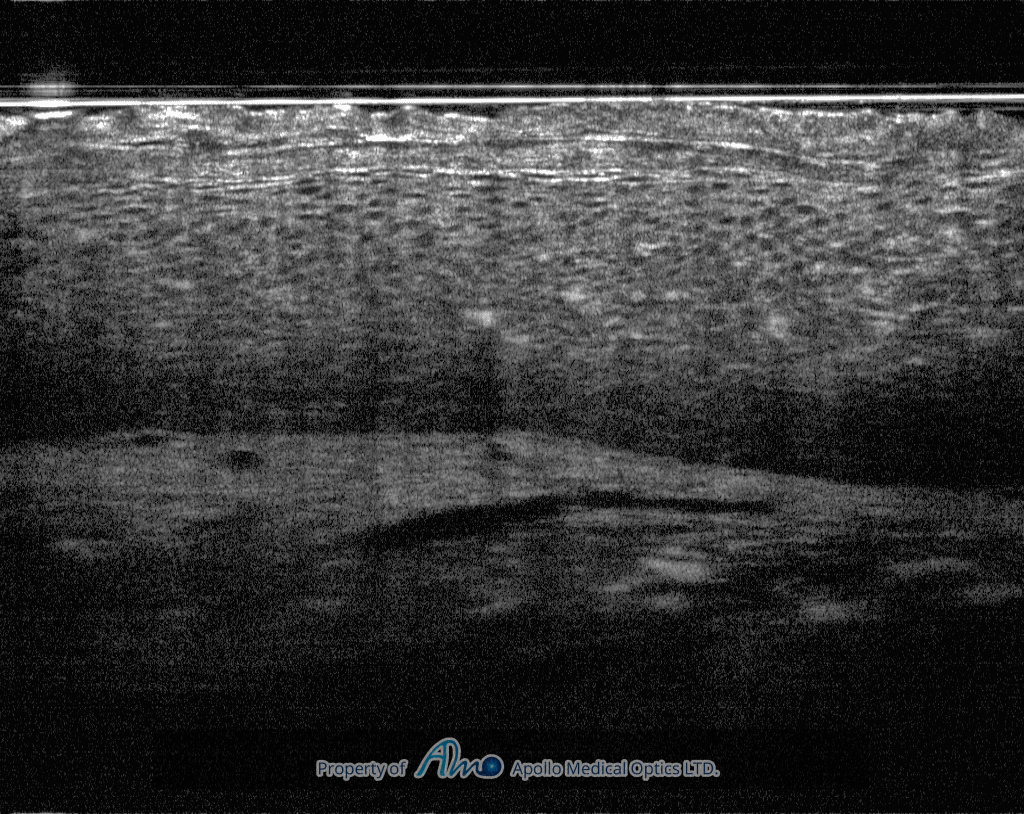

Bowen's Disease
Bowen’s disease is a synonym for squamous cell carcinoma in situ. It’s featured by disorientedly arranged atypical keratinocytes in the whole layer of the epidermis. The epidermis is often acanthotic. The nuclei of keratinocytes in Bowen’s disease may be pleomorphic in size and shape and become crowded. The parakeratosis and solar elastosis are common but not necessarily present.

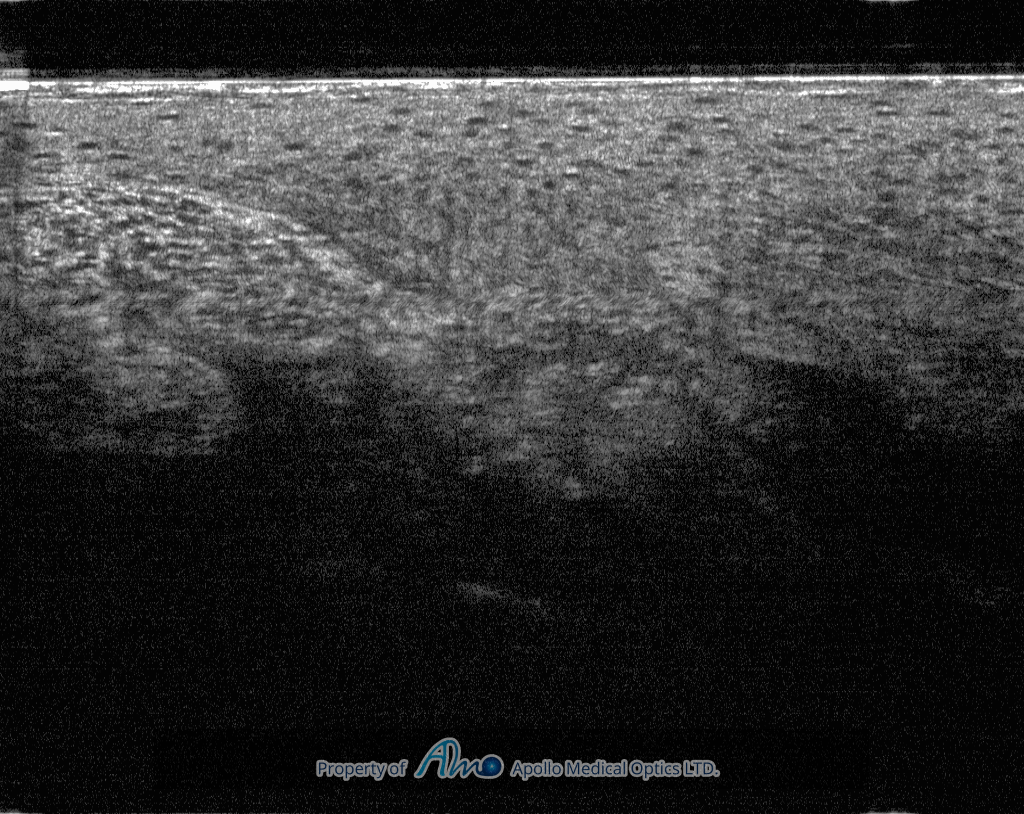

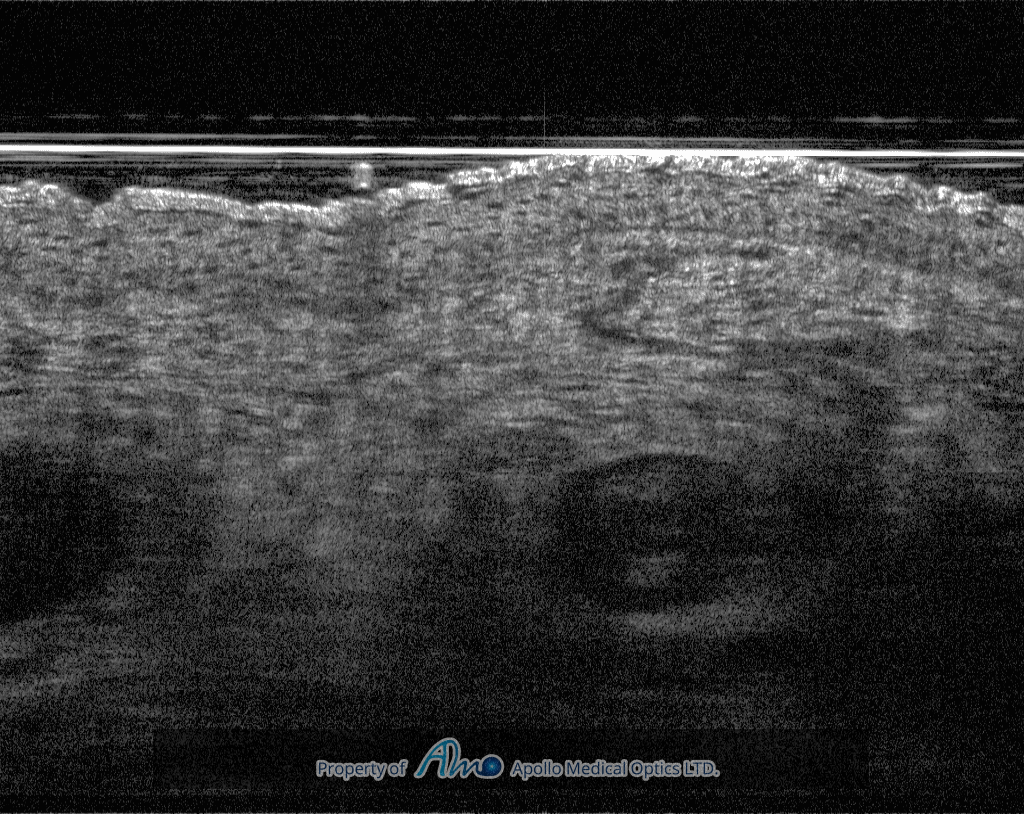

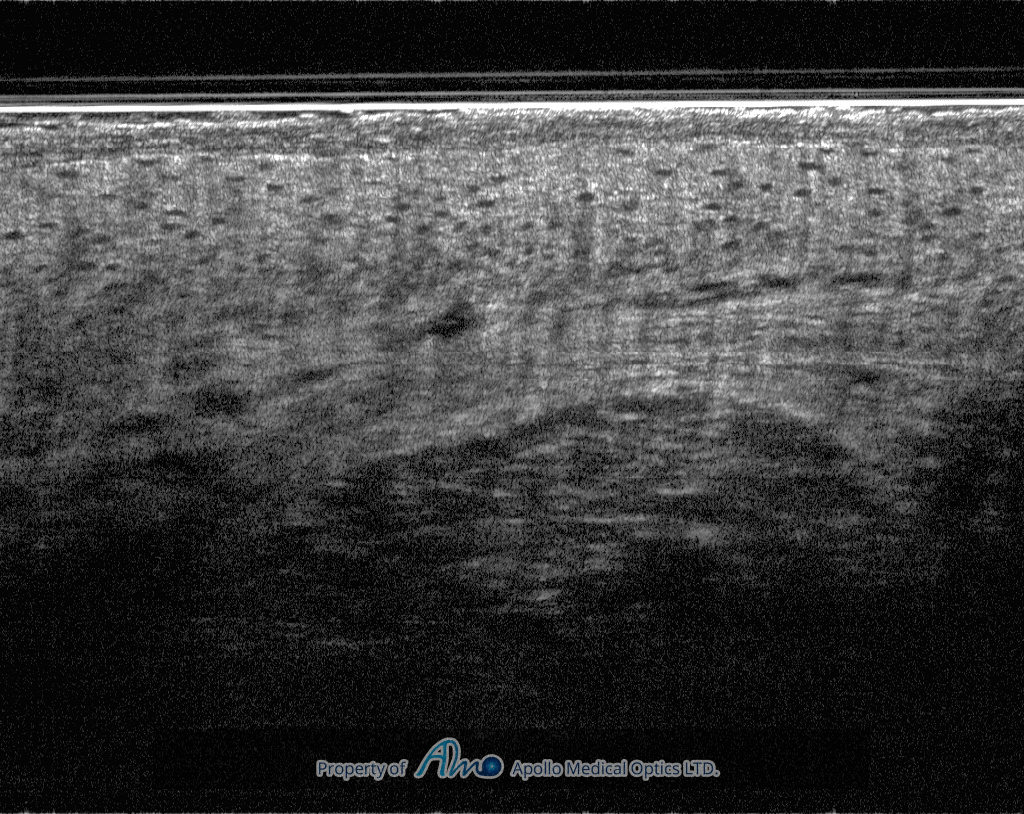

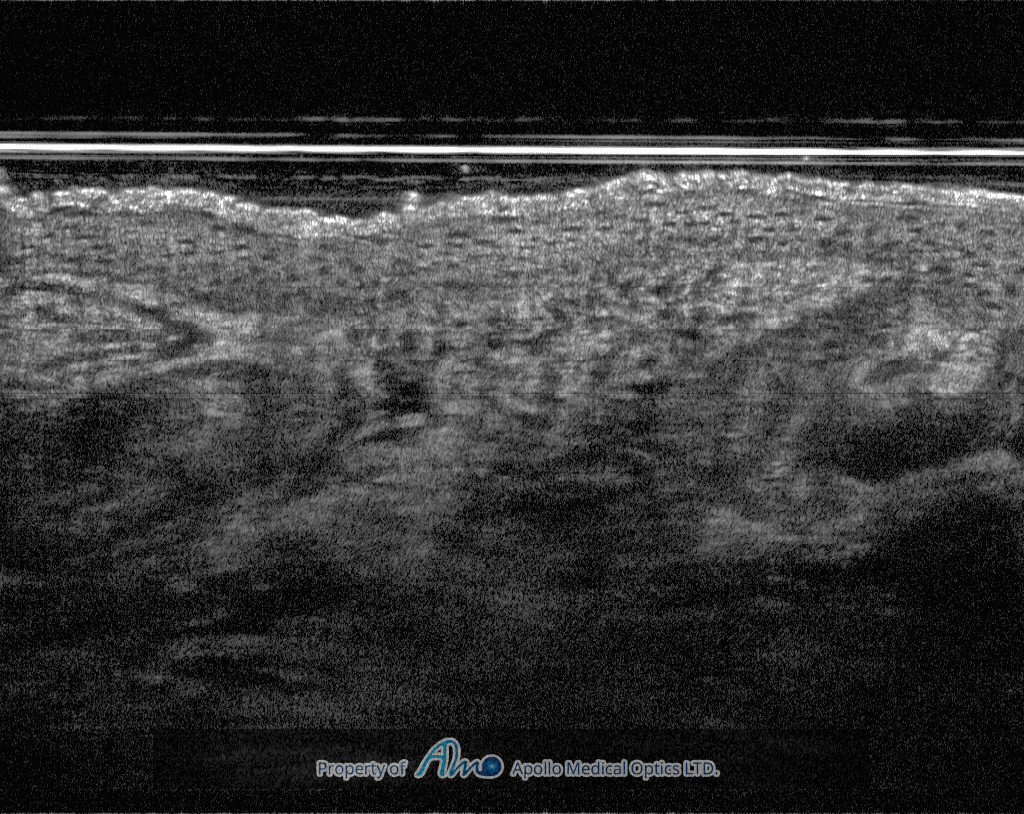

Basal Cell Carcinoma
Basal cell carcinoma is the most common skin malignancy. Pathologically, it presents with nodular proliferation of tumor lobules in the dermis and attached to the epidermis. The epidermis can be normal looking or ulcerated. Retraction space presents between tumor lobule and fibromyxoid stroma is a characteristic feature. The blood vessels in the peri-tumoral stroma are often ectatic.
Basal Cell Carcinoma
Basal cell carcinoma is the most common skin malignancy. Pathologically, it presents with nodular proliferation of tumor lobules in the dermis and attached to the epidermis. The epidermis can be normal looking or ulcerated. Retraction space presents between tumor lobule and fibromyxoid stroma is a characteristic feature. The blood vessels in the peri-tumoral stroma are often ectatic.
Basal Cell Carcinoma
Basal cell carcinoma is the most common skin malignancy. Pathologically, it presents with nodular proliferation of tumor lobules in the dermis and attached to the epidermis. The epidermis can be normal looking or ulcerated. Retraction space presents between tumor lobule and fibromyxoid stroma is a characteristic feature. The blood vessels in the peri-tumoral stroma are often ectatic.
Basal Cell Carcinoma
Basal cell carcinoma is the most common skin malignancy. Pathologically, it presents with nodular proliferation of tumor lobules in the dermis and attached to the epidermis. The epidermis can be normal looking or ulcerated. Retraction space presents between tumor lobule and fibromyxoid stroma is a characteristic feature. The blood vessels in the peri-tumoral stroma are often ectatic.

Inflammatory Skin Disease

(Click on the images to enlarge)

Spongiotic Dermatitis
Spongiotic dermatitis is a pathological diagnosis and often indicating eczematous dermatitis. Pathologically, eczematous dermatitis varies from acute, subacute, to chronic stage. In an acute stage, the stratum corneum and the thickness of the epidermis are relatively normal. It shows widened space between keratinocytes due to intercellular edema. The process is called spongiosis.

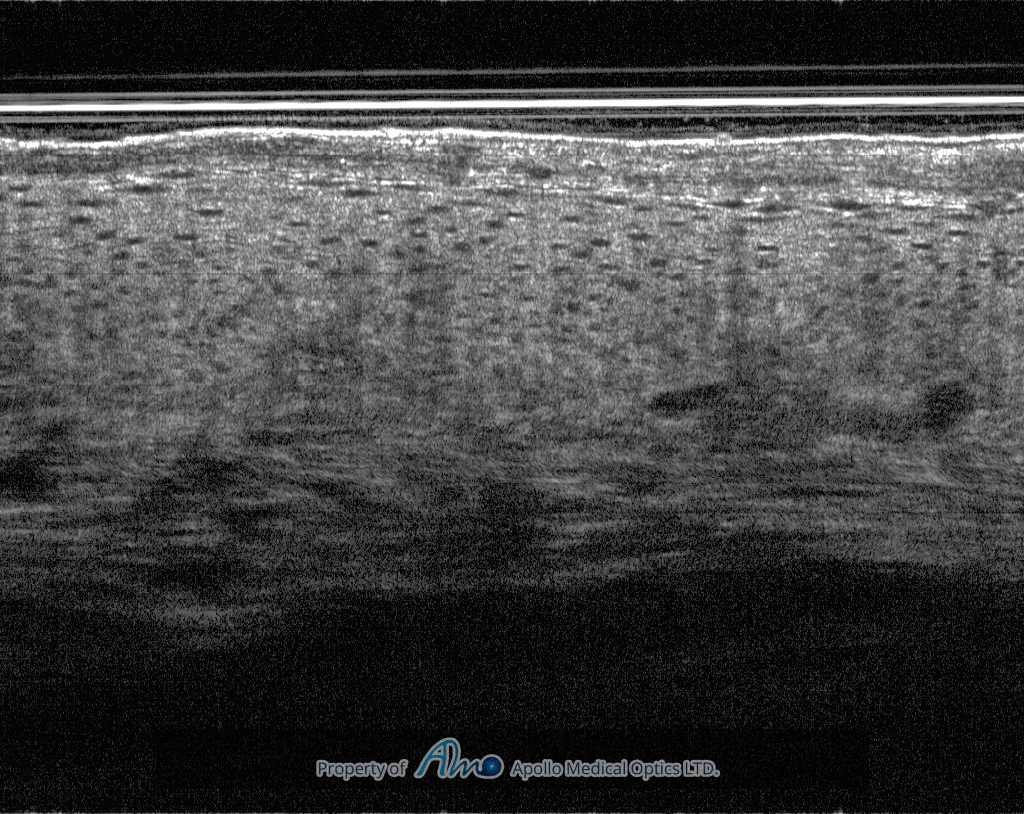

Subacute Eczema
In subacute eczematous dermatitis, the skin thickens and presents with scales. Pathologically, there are hyperkeratosis, parakeratosis, irregular acanthosis, and the presence of foci of spongiosis in the epidermis. The blood vessels in the dermis may be ectatic due to inflammation.

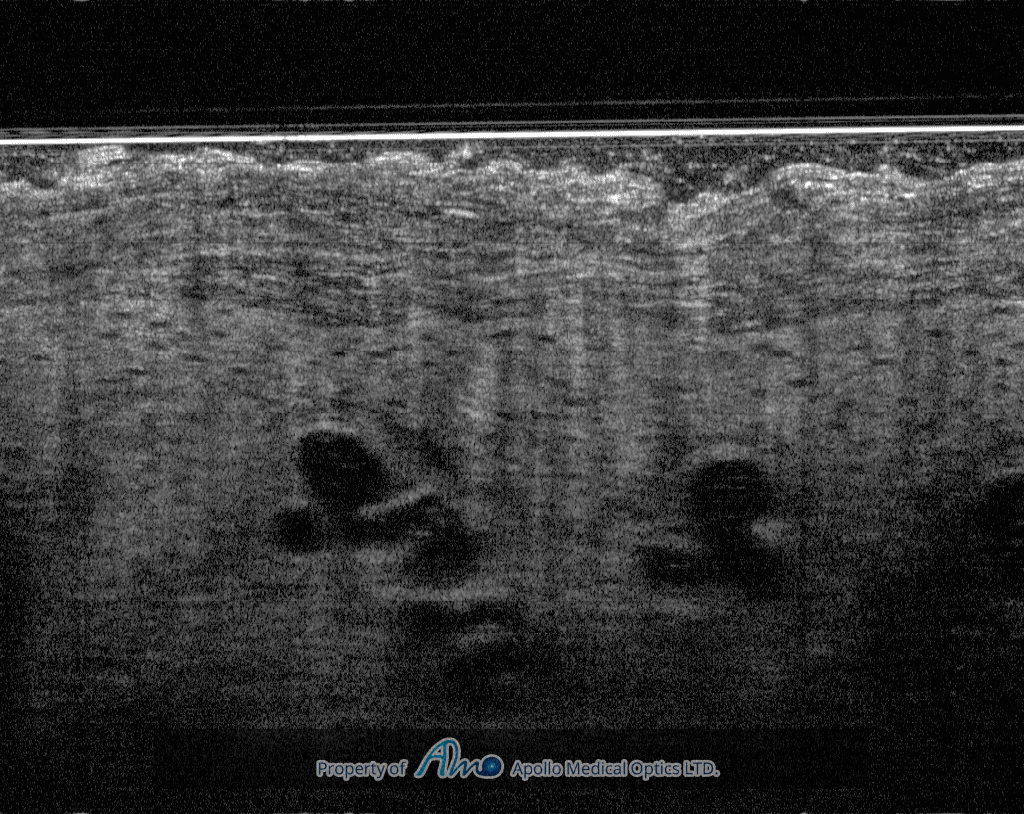

Chronic Eczema
In chronic eczematous dermatitis, the skin becomes very thick. There are usually thick and compact stratum corneum and irregular acanthosis. The spongiosis may not be obvious in this stage.

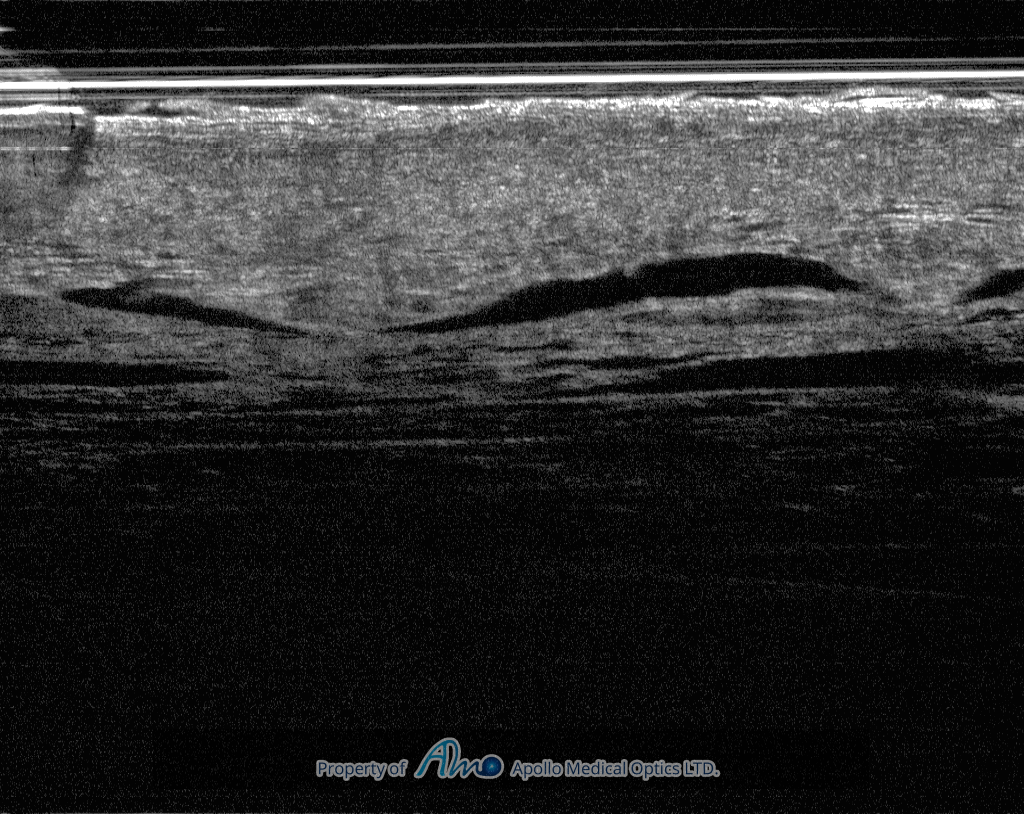

Bullous Pemphigoid
Bullous pemphigoid is an autoimmune bullous disease featured by eruptive tense blisters on the skin. Pathologically, it shows subepidermal separation in the dermal-epidermal junction due to IgG antibody deposition in the basement membrane.

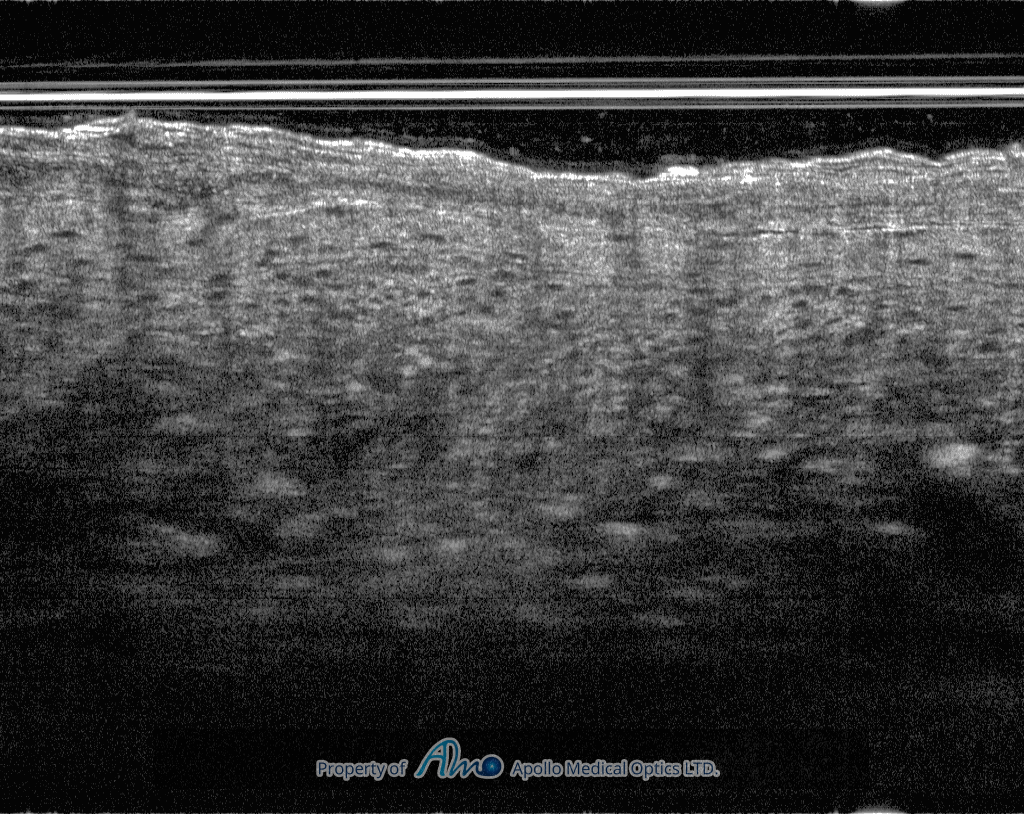

Lichen Planus
Lichen planus is a subacute to chronic idiopathic inflammatory skin disorder. It is featured by lichenoid interface dermatitis pathologically. The characteristic findings include compact hyperkeratosis, saw-toothed irregular acanthosis, blurred dermal-epidermal junction, and pigment incontinence in the upper dermis.

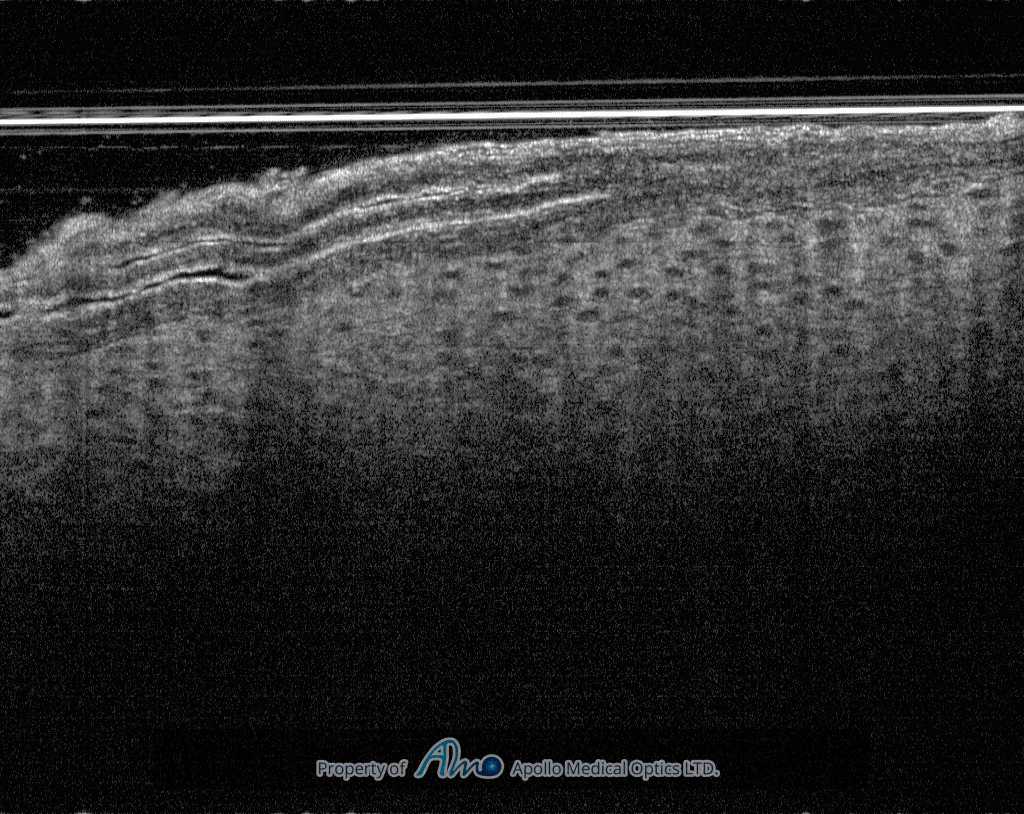

Psoriasis
Psoriasis is a chronic inflammatory skin disease featured by eruptive well-demarcated reddish plaques covered with thick silver-white scales. Pathologically, it shows diffuse hyperkeratosis and parakeratosis and often has neutrophils aggregation in the parakeratosis. The epidermis is regularly acanthosis and dermal papillae may be dilated and close to the surface.

Aesthetic Medicine

(Click on the images to enlarge)

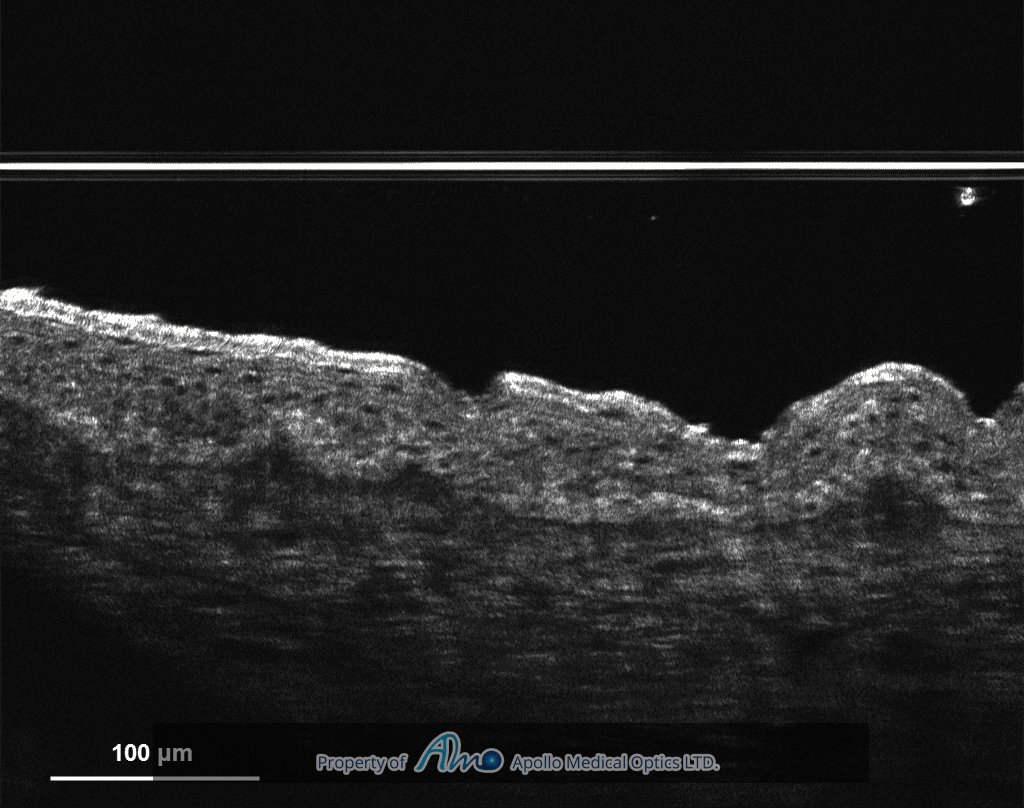

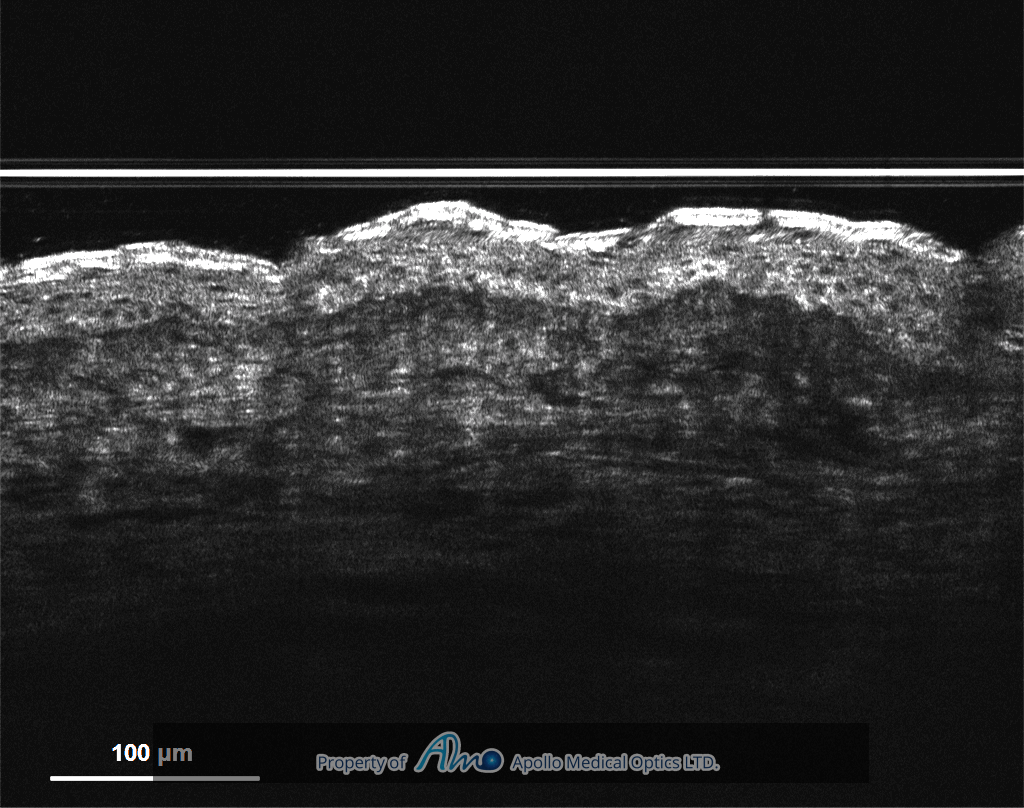

Melasma
Melasma is a common skin pigment disorder. Pathologically, it usually shows increased melanin, Solar elastosis, and rete ridge flattening.
Melasma
Melasma is a common skin pigment disorder. Pathologically, it usually shows increased melanin, Solar elastosis, and rete ridge flattening.

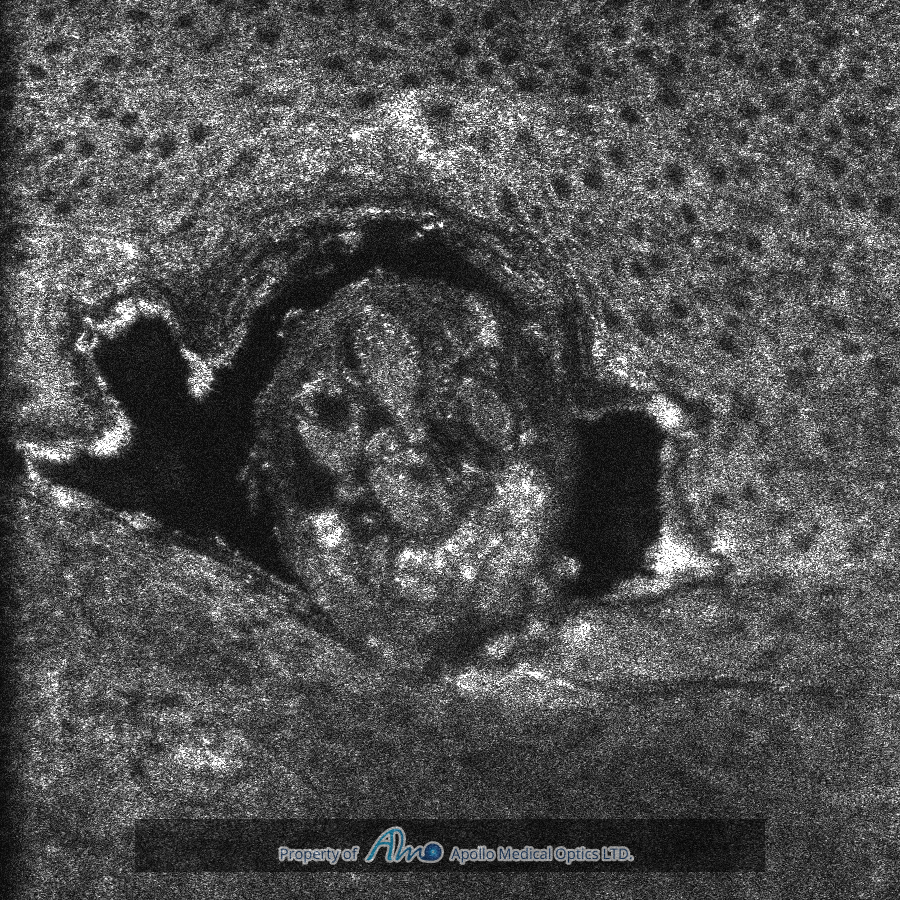

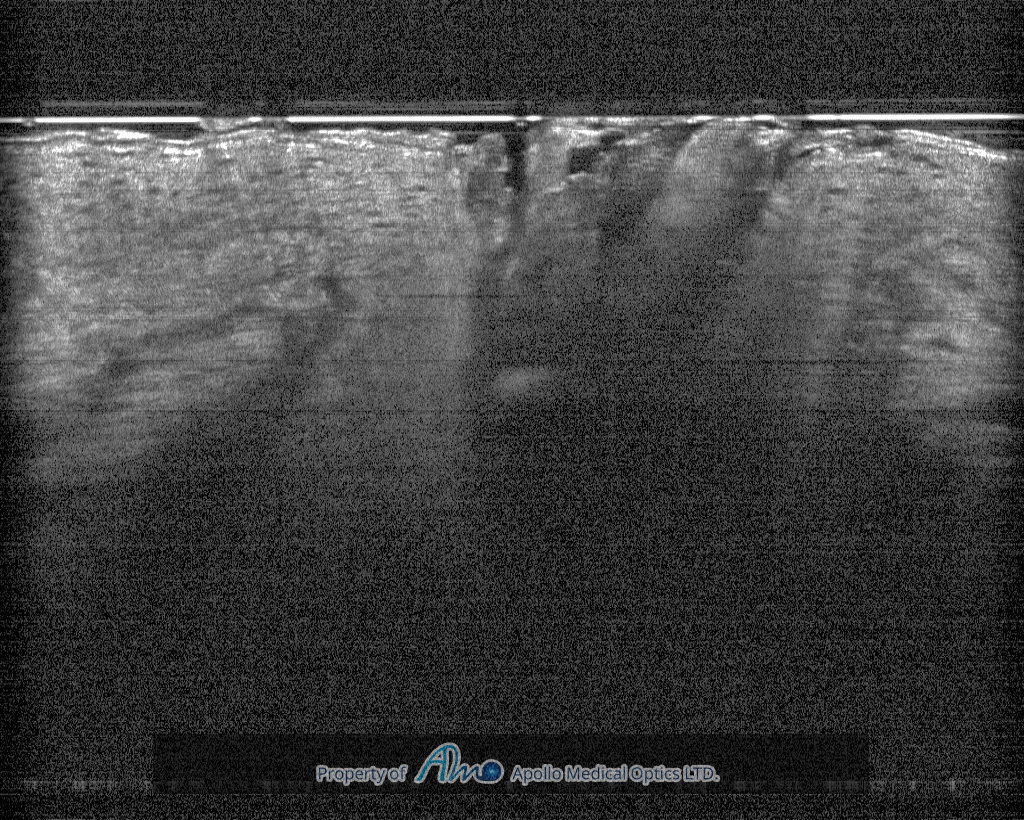

Demodex
Demodex mites are commonly present in the skin rich in sebaceous glands, such as facial skin. Either B-scan or E-scan can highlight the presence of demodex mites in the hair follicle. Checking different levels of E-scan images is especially helpful to count the number of mites.
Demodex
Demodex mites are commonly present in the skin rich in sebaceous glands, such as facial skin. Either B-scan or E-scan can highlight the presence of demodex mites in the hair follicle. Checking different levels of E-scan images is especially helpful to count the number of mites.

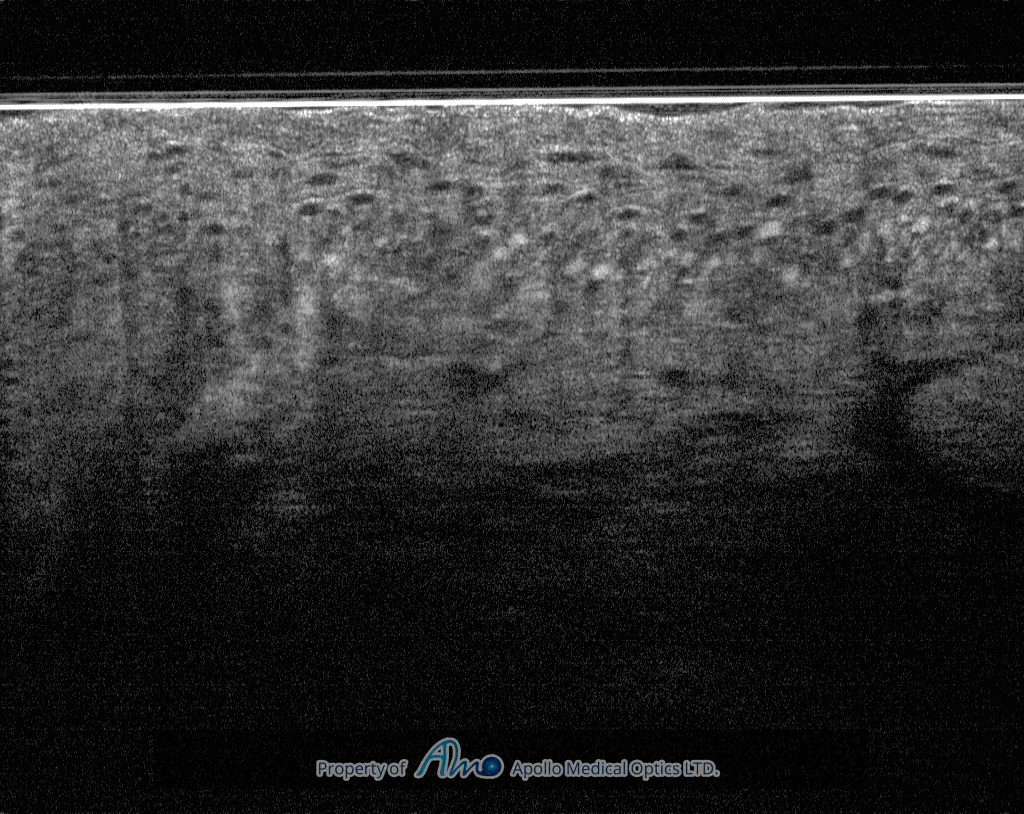

Large Cell Acanthoma
Large cell acanthoma is a transitional stage between solar lentigo and early seborrheic keratosis. The stratum corneum is more compact and mildly thickened. The cells, including cytoplasm and nuclei, are larger than the peripheral normal skin. The basal cell layer is usually hyperpigmented and may have mildly elongated rete ridges.

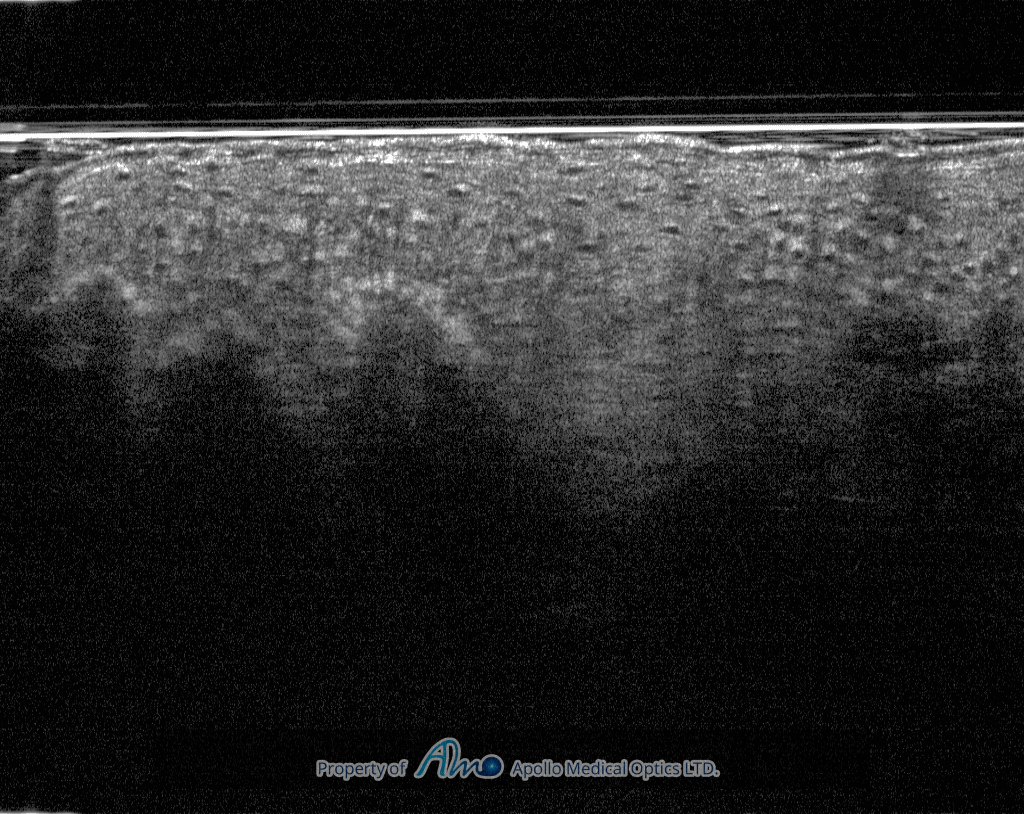

Lentigo Simplex
Lentigo simplex is the earliest stage to form a nevus. Pathologically, it usually shows mild proliferation of melanocytes at the basal cell layer without nest formation. It usually presents with basal hyperpigmentation. The excess melanin produced from those melanocytes can be demonstrated in the keratinocytes in the spinous layer.
