ApolloVue® B100
Image System

Improving healthcare and human welfare

The ApolloVue® B100 Image System is a bench-top full-field optical coherence tomography (FF-OCT) system for non-invasive medical examination. With a unique crystal fiber light source, ApolloVue® B100 provides cellular level images of excised tissues or cultured cells. The digital and high-resolution images can be used or analyzed by on-site or remote medical practitioners or researchers to assist the formation of clinical judgments. ApolloVue® B100 provides fast and precise 3D measurements, which enables users to review data in both en-face and cross-section images.

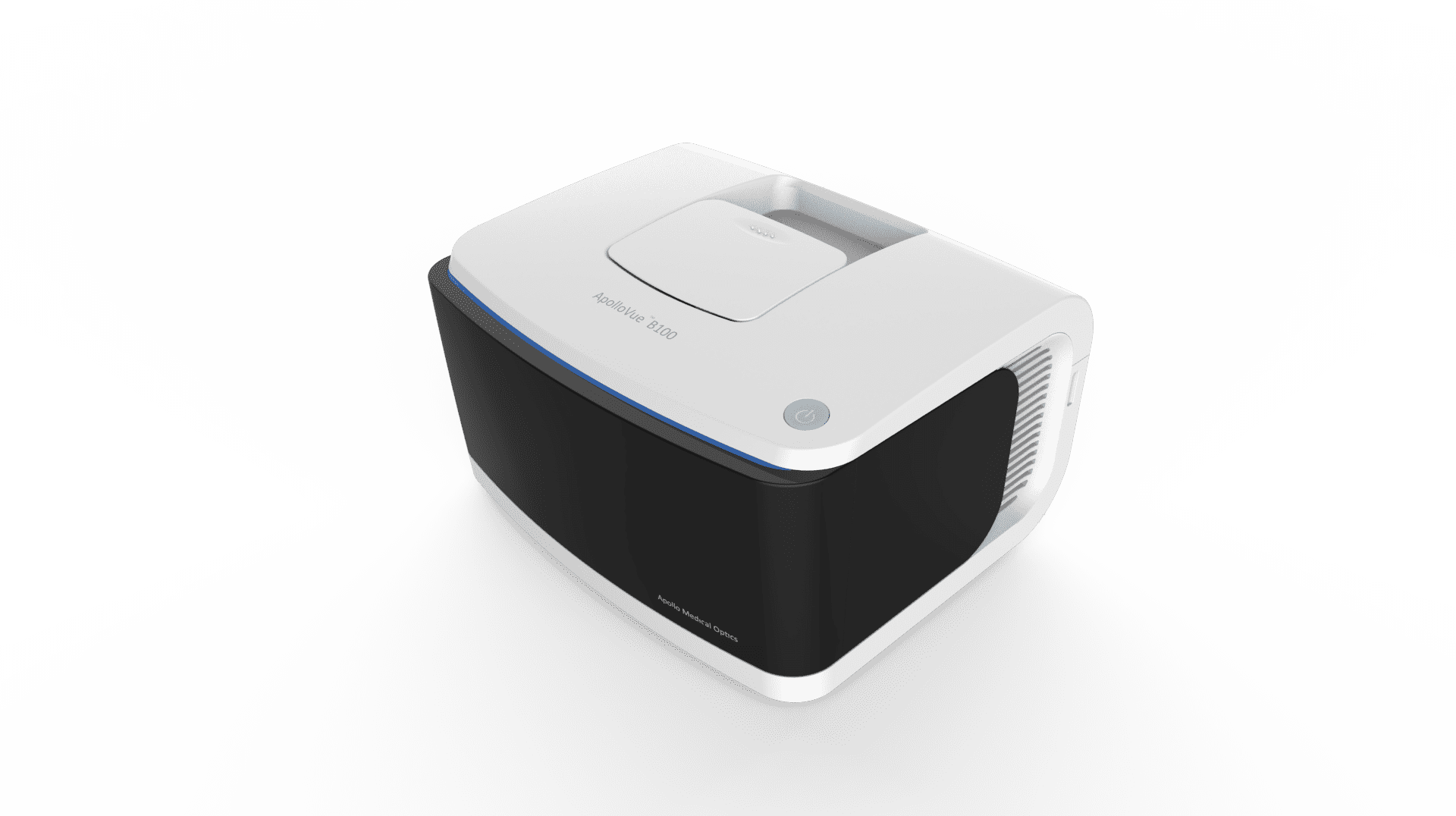

161024.254 1
Gallery

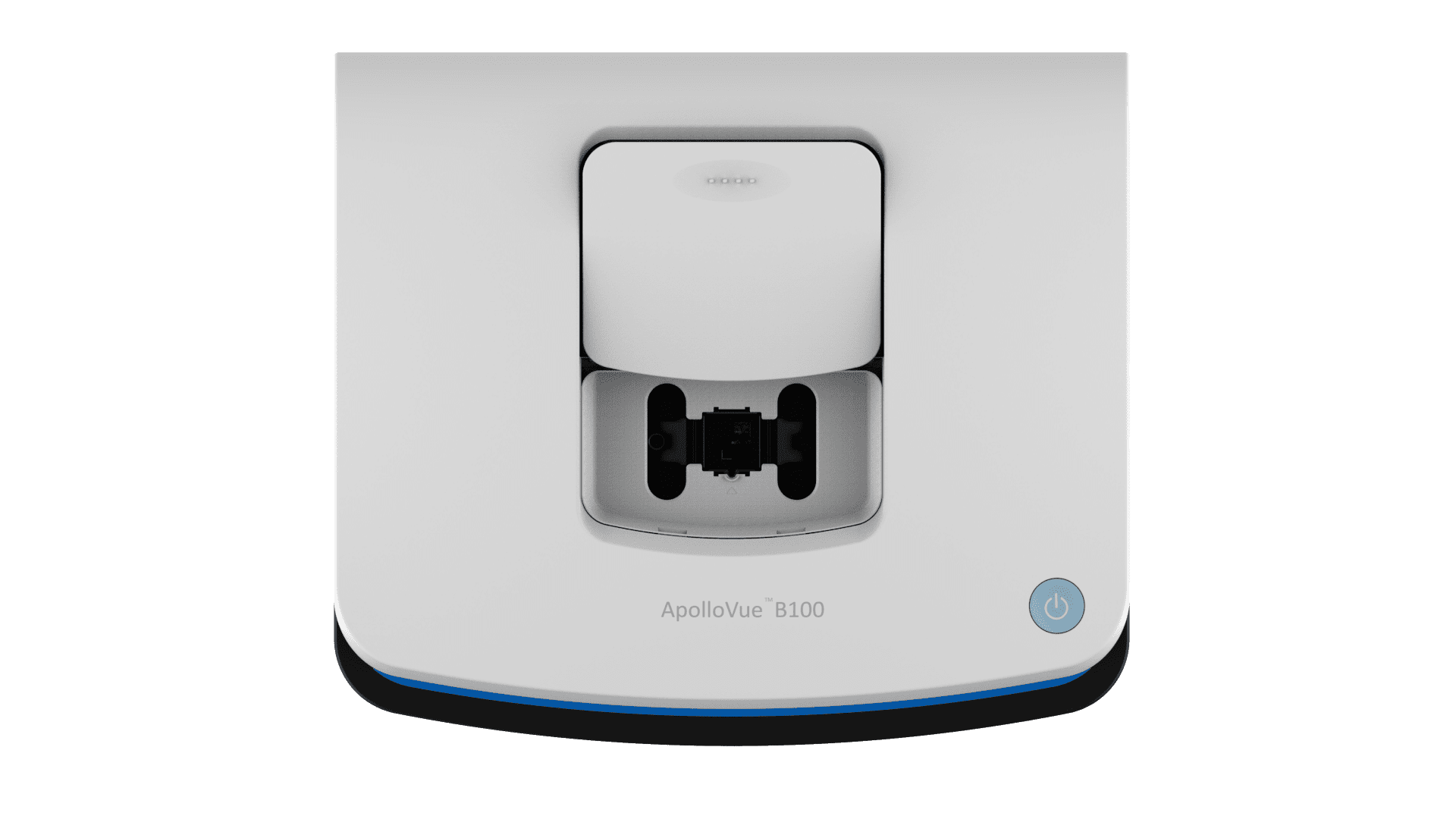

161024.248161024.248

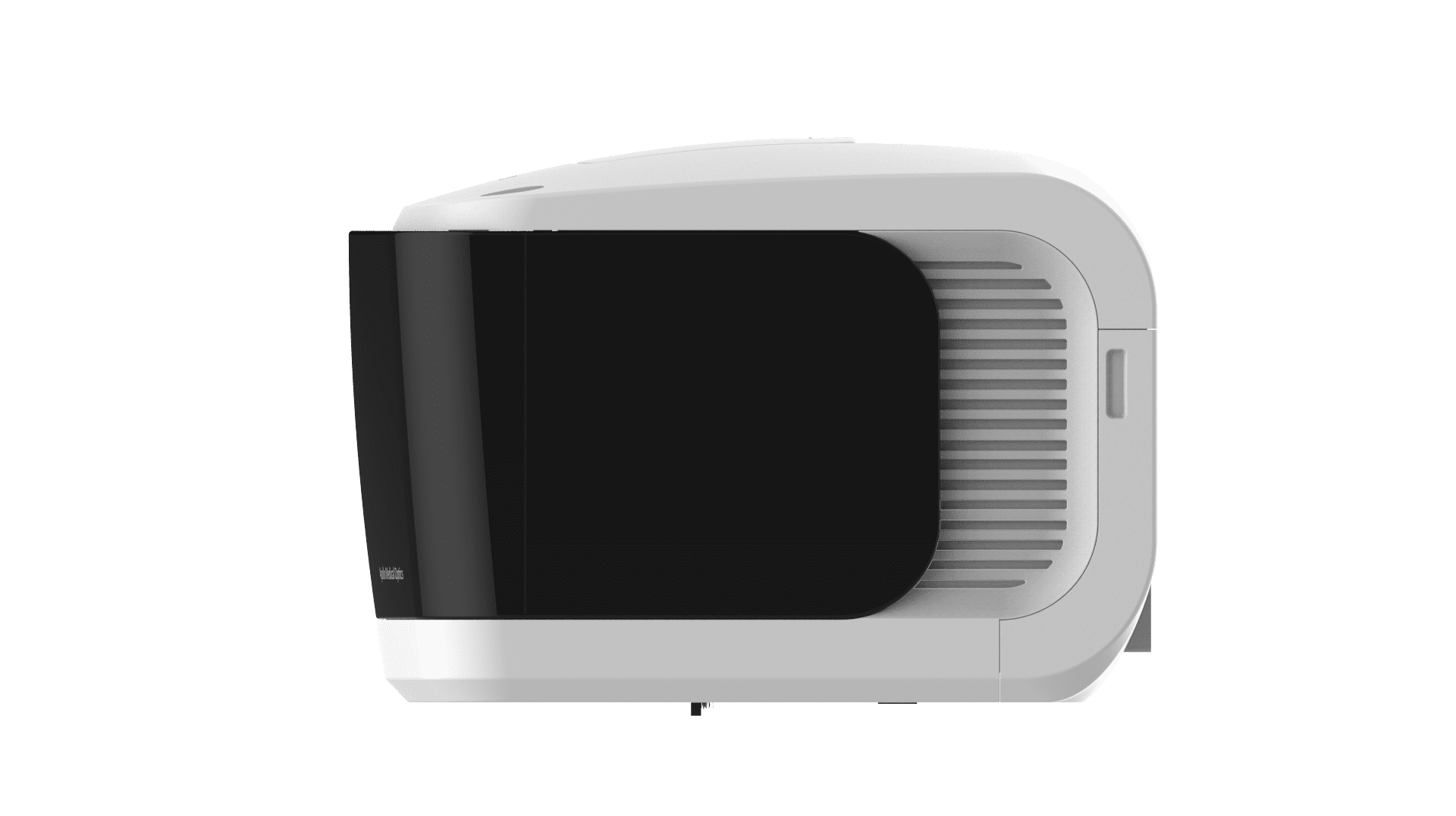

161024.249161024.249

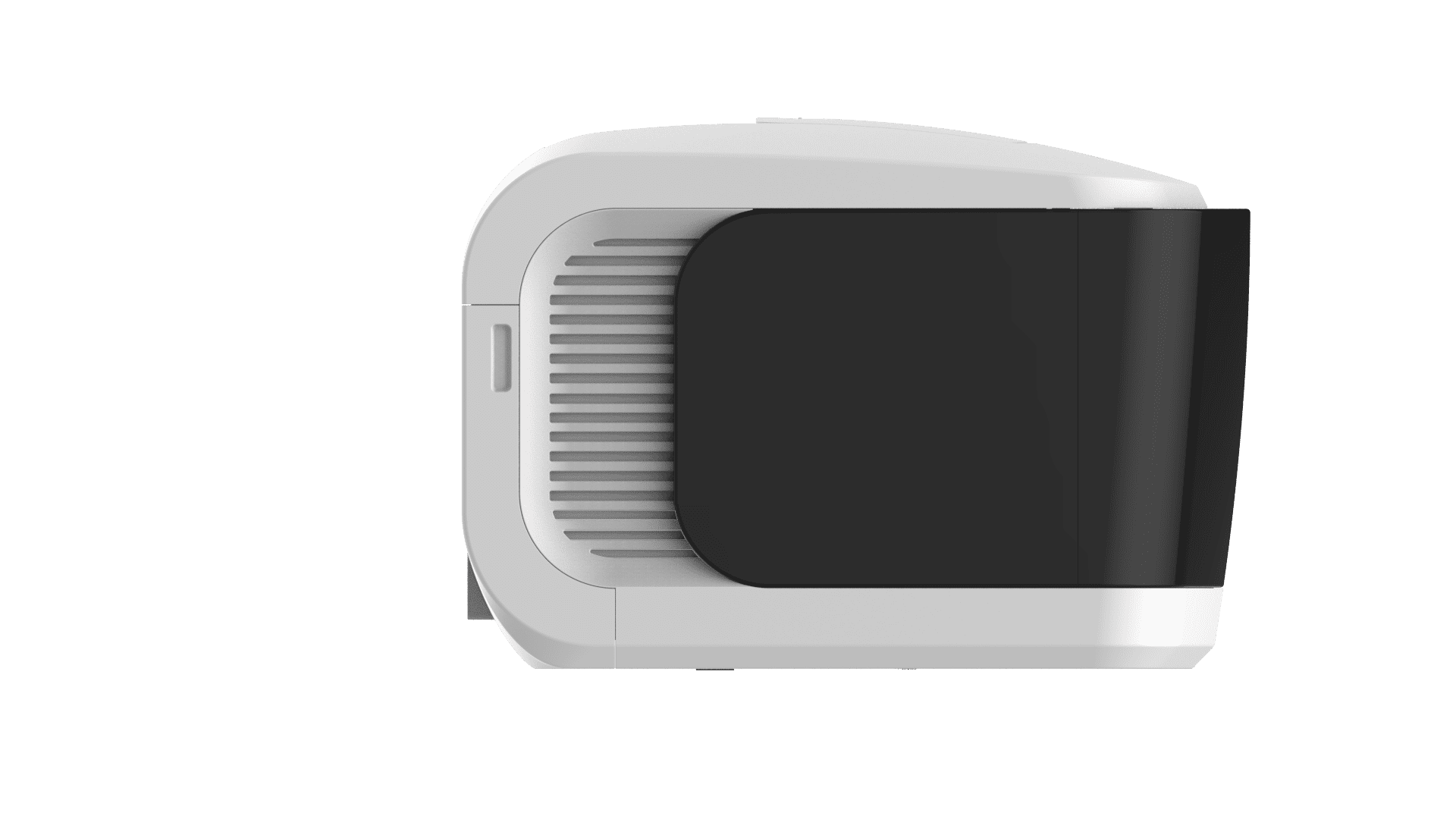

161024.250161024.250

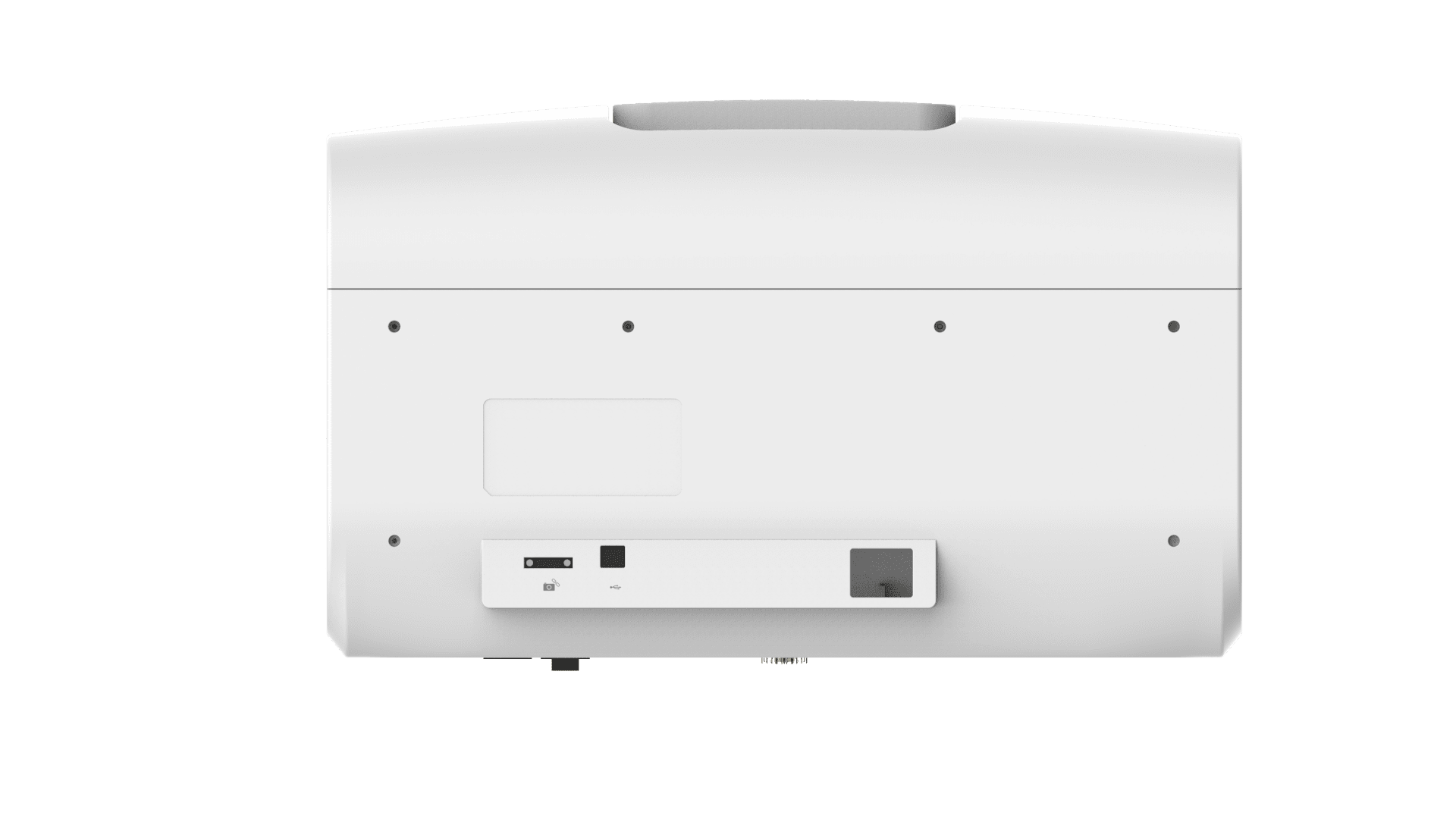

161024.251161024.251
Specifications
Resolution
Vertical Optical Resolution
≤ 1.5 μm
Horizontal Optical Resolution
≤ 1.1 μm
Field of view
0.8 mm × 0.6 mm
Scanning
Maximum scan width
20 mm × 20 mm
Image Scan Time
≤ 6.5 min at 10 mm × 10 mm scan width
Other
Dimensions (L × W × H)
≤ 500 × 400 × 300 (mm)
Weight
About 30 kg
Cassette Specifications
Dimensions (L × W × H)
≤ 35 × 35 × 30 (mm)
Weight
About 20 g
Maximum Sample/Tissue Dimensions
≤ 20 × 20 × 9 (mm)
